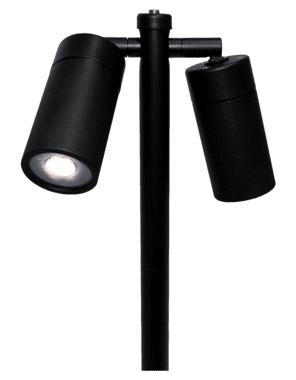

Grevillea LED GR2 - G442-LED

A compact and versatile landscape luminaire with an adjustable head
Configure this product Features Specifications Accessories

Product Overview

An excellent option for delivering light on the ground plane, or for feature accent lighting without obstruction from low-level plantings. Aim and tilt adjustability, a choice of finishes and long service life are all part of the package. Features Lumascape's d5 driver technology as a standard inclusion, providing a high level of control: When high output is required, it can be deployed in its full output, 2 x 6W configuration; If a lower level of light is required, it can be set as low as 0.6W, (either by the factory or in the field).

Features

Lumen Output 2 x 556lm LED Power 2 x 6 W Power Consumption 2 x 7.5 W Input Voltage 24 Vdc Control Protocol PWM (0-10V, DMX) IP Rating IP65 Compliance CE RCM Color Options Warm White Cool White Blue (470 nm) Data Sheet

Specifications

Accessories

Accessories
G624-2 Glare Shield
G624-CU Copper Glare Shield

Downloads

Data Sheet Install Guide
IES Files G442-LED ZIP (58.75 KB)

Technology

Product Configurator

G442-LED _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Grevillea LED GR2 below

Light Engine

Required

2 x 6W (12)

Light Source

Required

Static White (D7)

Static White (D7)

2,700 K (80 CRI, 3 SDCM)

Static White (H6)

Static White (H6)

3,000 K (80 CRI, 3 SDCM)

Static White (W4)

Static White (W4)

4,000 K (80 CRI, 3 SDCM)

Single Color (B4)

Single Color (B4)

Blue (470 nm)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

25°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

40º

Input Voltage

GardenQ

Required

24V DC - Dimmable (D)

24V DC - Dimmable (D)

PWM Dimmable Driver, 24V DC

Finish

Custom powder coat colours are available. Please consult factory.

Required

Polished Copper (CU)

Polished Copper (CU)

Polished Copper finish

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories

Accessories

Copper Glare Shield (G624-CU-2)

2 x Polished copper Glare Shield

Glare Shield (G624-2)

2 x Glare Shields. Order to Match Luminaire Powder Coat Colour
