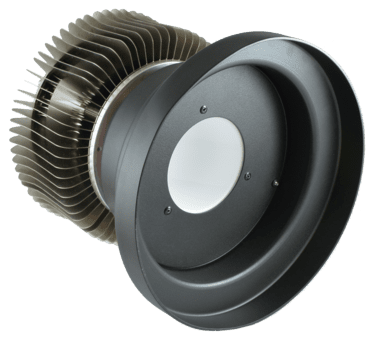

Incand-Air 30 - LDOH003

Theatre grade high power LED downlight system designed to replace existing 250W Par 38 luminaires

Product Overview

The Incand-Air 30 is a high power LED based downlight system developed for retrofitting into the mounting hardware of existing high power downlights (the 250W Par 38), or use as a complete luminaire for new installations.

The Incand-Air 30 features a specifically developed LED light engine and is capable of producing beautiful, high CRI whites of any Correlated Colour temperature (CCT) and accurately replicates the colour temperature shift that is characteristic of incandescent lamps when dimmed. Incand-Air has the benefit of an ability to produce not only excellent whites, but rich, vivid colours. The Incand-Air 30 features a specifically developed LED light engine based on an array of 30 x Red, Green, Blue, White and Amber Luxeon LEDs.

Incand-Air 30 achieves outstanding, totally smooth dimming performance from 100% to black. This is accomplished by the use of an Adaptive Resolution dimming method. This ensures that colours remain consistent and controllable at all levels, which is critical for the accurate control of colour temperature during dimming. All luminaires across the installation dim smoothly to the same level and colour temperature. They dim at the same rate and finally fade to black at the same time, with no flicker or step change to off.

Features

Lumen Output 2,160lm Power Consumption 65W Typical Lifetime > 60,000 hours @ 50ºC ambient (B10, L70, TM21 Reported) Control Protocol DMX/RDM Dimming Smooth dimming 100% to black Compliance CE Color Options RGBA RGBW Tunable White Data Sheet
