Centria C3

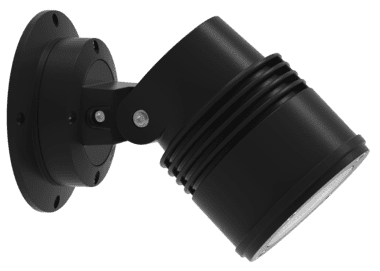

Centria C3 - LS1015

A compact and versatile surface mount luminaire with remote driver

Configure this product Features Specifications Accessories

Product Overview

The Centria C3 is one of the most compact and versatile surface mount luminaires in its class, featuring light output and energy efficiency surpassing 35W Metal Halide. Available in white, colour changing and tunable white light engines, the LS1015 is packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting and glare control accessories enable installation in multiple orientations including two axes of adjustment, making it ideal for direct or indirect applications.

Features

Lumen Output 1,655 lm Power Consumption ≤ 26 W Typical Lifetime > 60,000 hours (B10, L70, TM21 Reported) Input Voltage 30 to 48 Vdc Control Protocol PowerSync (DMX/RDM, 0-10V) IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK7 Compliance

Color Options Warm White

Warm White

Cool White

RGBW

RGBW with Royal Blue

Tunable White

Red

Green

Blue (470 nm)

Data Sheet

Specifications

Accessories


LS6104	Glare Shield

Downloads

Data Sheet Install Guide

IES Files LS1015 V2 ZIP (1.05 M) DXF Files LS1015 ZIP (275.56 KB)

Technology

Product Configurator

LS1015 _ _ _ _ _ _

Login to view pricing

Reset to Default Clear Selected Add

Customise Centria C3 below

Light Engine

Required

22W (22W)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Single Colour (RED)

Single Colour (RED)

Red

Single Colour (GRN)

Single Colour (GRN)

Green

Single Colour (BLU)

Single Colour (BLU)

Blue

Dynamic Colour (4CA)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4CW)

Dynamic Colour (4CW)

RGBW

Dynamic Colour (4BW)

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

Tunable White (2WT)

2,700 K - 6,500 K

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

10°

Narrow (NR)

13°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

26°

Wide (WD)

47°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

30 to 48 Vdc (07)

30 to 48 Vdc (07)

Low Voltage

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

PowerSync™ (PS)

Required for all dimming and color-changing applications. LS6540 (mains voltage) or LS6550 (low voltage) data injector required (order separately).

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info

Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info

Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info

Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info

White (WT)

RAL9016 from RAL Classic collection

More info

Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info

Latte (LT)

RAL7006 from RAL Classic collection

More info

Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info

Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info
