Erden E6 Foundation

Erden E6 Foundation - LS3062

A architectural-grade, medium-powered, shallow-depth in-ground.

Configure this product Features Specifications Videos Accessories

Product Overview

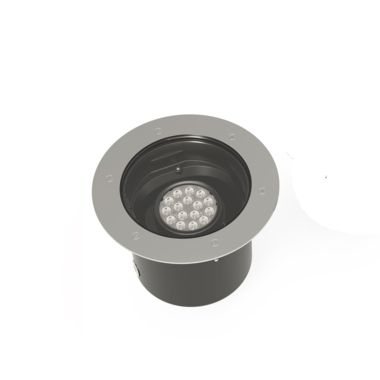

The Erden E6 Foundation is a medium-powered, shallow-depth in-ground that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. Available with integrated DALI^® control or as non-dimmable.

Features

Power Consumption 25 W Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz IP Rating IP68 IK Rating IK10 Static Load Rating 9,259 lb (4,200 kg) Compliance

Color Options Warm White

Data Sheet

Specifications

Videos

Webinar | Foundation Family

Watch the webinar introducing Lumascape's Foundation range of enhanced lighting controls

Accessories


LS6052-K	Pre-Installation Kit
LS640-2	Mounting Collar
LS6247	Snoot Array Louver
LS6248	Honeycomb Louver

Downloads

Data Sheet

Install Instructions (Pre-Install) PDF (1.49 M) Install Instructions (Direct Burial) PDF (1.2 M) IES Files LS3062 Dali ZIP (47.18 KB) Product Brochure Foundation Family PDF (569.09 KB)

Technology

Product Configurator

LS3062 _ _ _ _ _ _ _ _ _ _

Reset to Default Clear Selected Add

Customise Erden E6 Foundation below

Installation Type

Select the installation type you require.

Required

Pre-Installation

Mounting Collar

Direct Burial

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

25 W (25D)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

3,000 K (80 CRI, 3 SDCM)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

5,000 K (70 CRI, 3 SDCM)

Lens

Required

OptiClear™ (A)

Glass of very high optical purity and load strength. Suitable for walk-over and drive-over applications.

GripGlass™ (G)

OptiClear™ glass with slip reduction glazing process. Suitable for walk-over and drive-over applications.

Cover

Required

Round recessed, stainless steel, polished (B)

Round recessed, stainless steel, brushed (H)

Round flush type, stainless steel, polished (D)

Round flush, stainless steel, brushed (I)

Round flush, stainless steel, polished (M)

Round flush, stainless steel, brushed (N)

Connection Type

For Ingrounds

Required

MicroAntiLeach Cable (84)

Flexible cable for hard wired installations, includes MicroAntileach. For pre-installation applications a pre-installation kit is required - order separately.

IP68 Connector with Junction Box (87)

Not suitable for colour changing or dimming applications. Pre-installation kit required - order separately. For all applications requiring mounting collar, consult factory

Connectorised with Junction Box (77)

Flexible cable for connectorised installations, includes MicroAntileach. This method allows for a tool free final connection to the luminaire For all applications requiring mounting collar, consult factory.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

10°

Narrow (NR)

13°

Narrow Medium (NM)

20°

Medium (ME)

26°

Wide (WD)

47°

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

40° x 10°

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

60° x 20°

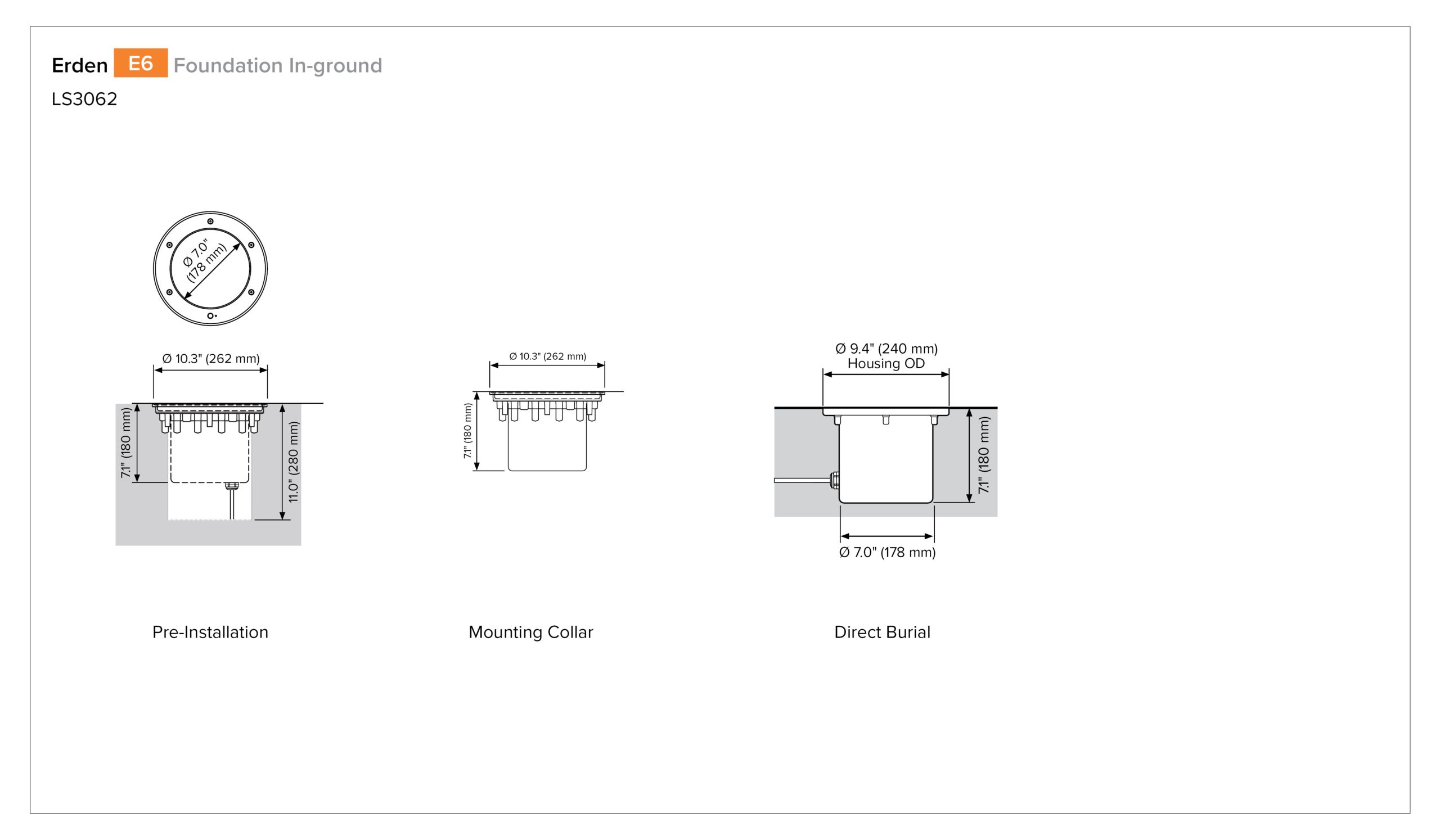

Housing Depth

Required

Pre-Install Blockout (23)

12.8"/ 280 mm

Mounting Collar (23)

12.8"/ 280 mm

Direct Burial (21)

7.1" / 180 mm

Cable Entry

Required

Side (N)

Bottom (Q)

Input Voltage

Required

220 to 240 Vac, 50 Hz (01)

Line Voltage

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

DALI (DL)

Accessories

Pre-Installation Options

Pre-Installation Kit (LS6052-K-84)

For use with Type 84 connection. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Blockout luminaire.

More info

Pre-Installation Kit (LS6052-K-87-01)

For use with mains voltage. Includes 1m MicroAntiLeach cable with an IP68 connector and a 3 way junction box. Not suitable for dimmable luminaires. Price inclusive with Pre-Installation Blockout luminaire.

More info

Pre-Installation Kit (LS6052-K-77)

For use with Type 77 connections. Fitted with an IP68 connector, which attaches directly to the cable supplied with an LS640-K without the use of any tools. The cable is 3' (1 m) in length and is factory-assembled with a junction box. Price inclusive with Pre-Installation Blockout luminaire.

More info

Mounting Collar (LS640-2)

For use in decks and tree grates. Connection to the branch circuit via junction box (supplied by others) or other approved method. Price inclusive with Pre-Installation Mounting Collar luminaire.

More info

Shielding & Glare Control

Snoot Array Louver (LS6247)

Provides additional glare control. Available in black only and ordered separately.

Honeycomb Louver (LS6248)

Provides additional glare control. Available in black only and ordered separately.
