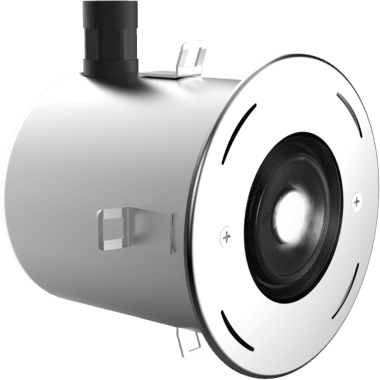

Nero LED NE1 - LS333ANS-2LED

A versatile 'swimming pool rated' underwater luminaire
Configure this product Features Specifications

Product Overview

The LS333ANS-2LED is a swimming pool rated luminaire and is one of Lumascape's most popular. It is constructed entirely of 316 marine grade stainless steel and utilises a special alignment feature to ensure the beam of light is perpendicular to the installation surface, even if the pre-installation blockout niche is not. The use of LEDs allows for the creative introduction of colour and improved energy efficiency.

Features

Lumen Output 400 lm, 700 lm Power Consumption < 8 W, <10W Typical Lifetime (TM21 Reported) > 60,000 hours @ 35°C Water Temperature (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 66,556 hours @ 35°C Water Temp (B10, L90, TM21 Projected) Control Protocol PWM (0-10V, DMX) IP Rating IP68 to 33' (10 m) IK Rating IK10 Compliance CE Color Options Warm White Cool White Orange RGB Red Blue (470 nm) Data Sheet

Specifications

Downloads

Data Sheet Install Guide
BIM Files LS333ANS-2LED ZIP (221.23 KB) DXF Files LS333ANS-2LED ZIP (140.31 KB) IES Files LS333ANS-2LED ZIP (218.74 KB) CAD Details Link

Technology

Product Configurator

LS333ANS-2LED _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Nero LED NE1 below

Light Engine

Required

3 W (3)

6 W (6)

9 W (9)

Light Source

Required

Static White (D7)

Static White (D7)

2,700 K (80 CRI, 3 SDCM)

Static White (H6)

Static White (H6)

3,000 K (80 CRI, 3 SDCM)

Static White (W4)

Static White (W4)

4,000 K (80 CRI, 3 SDCM)

Single Color (B4)

Single Color (B4)

Blue (470 nm)

Dynamic Color (M4)

Dynamic Color (M4)

RGB

Turtle-Friendly (RO)

Turtle-Friendly (RO)

620nm. Select for special applications. Complies to Florida Fish and Wildlife Commission, Wildlife Lighting Program

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Narrow (NR)

Narrow (NR)

14°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

25°

Wide (WD)

Wide (WD)

40º

Input Voltage

Required

24 Vdc (07)

24 Vdc (07)

Non-Dimmable

24 Vdc Dimmable (27)

24 Vdc Dimmable (27)

PWM Dimmable Driver

Cable Length

For custom cable lengths, contact Lumascape. Cable cannot be field installed.

Required

5 m (05)

8 m (08)

15 m (15)

20 m (20)

25 m (25)
