Balitza BA1 - LS482

A versatile and tough bollard luminaire suitable for several applications

Product Overview

The LS482 Balitza Bollard luminaire is constructed from 316 marine grade stainless steel with Lumascape’s proprietary ElectroPolishPlus™ process to give a long life to the surface finish, and provide excellent corrosion resistance in harsh environments such as coastal locations. The LS482 is versatile in both function and appearance, having various configurations in height, head type, mounting method and lamp type.

Features

Power Consumption 13W 18W 23W 35W Lamp Type GX24, T4 (G6.35), CFL (E26) Construction 316 stainless steel IP Rating IP66 Compliance ETL - USA & Canada CE Color Options Warm White Data Sheet

Specifications

Product Configurator

Customise Balitza BA1 below

Lamp

Required

18W CFL/TC-T (264)

18W CFL/TC-T (264)

Includes GX24-q2 Electronic ballast/transformer. Lamp not included.

23W Self Ballasted CFL (291)

23W Self Ballasted CFL (291)

Includes E26/E27 a medium base. Lamp not included.

50W Halogen (293)

50W Halogen (293)

Includes a G4/GY6.5 base. Lamp not included.

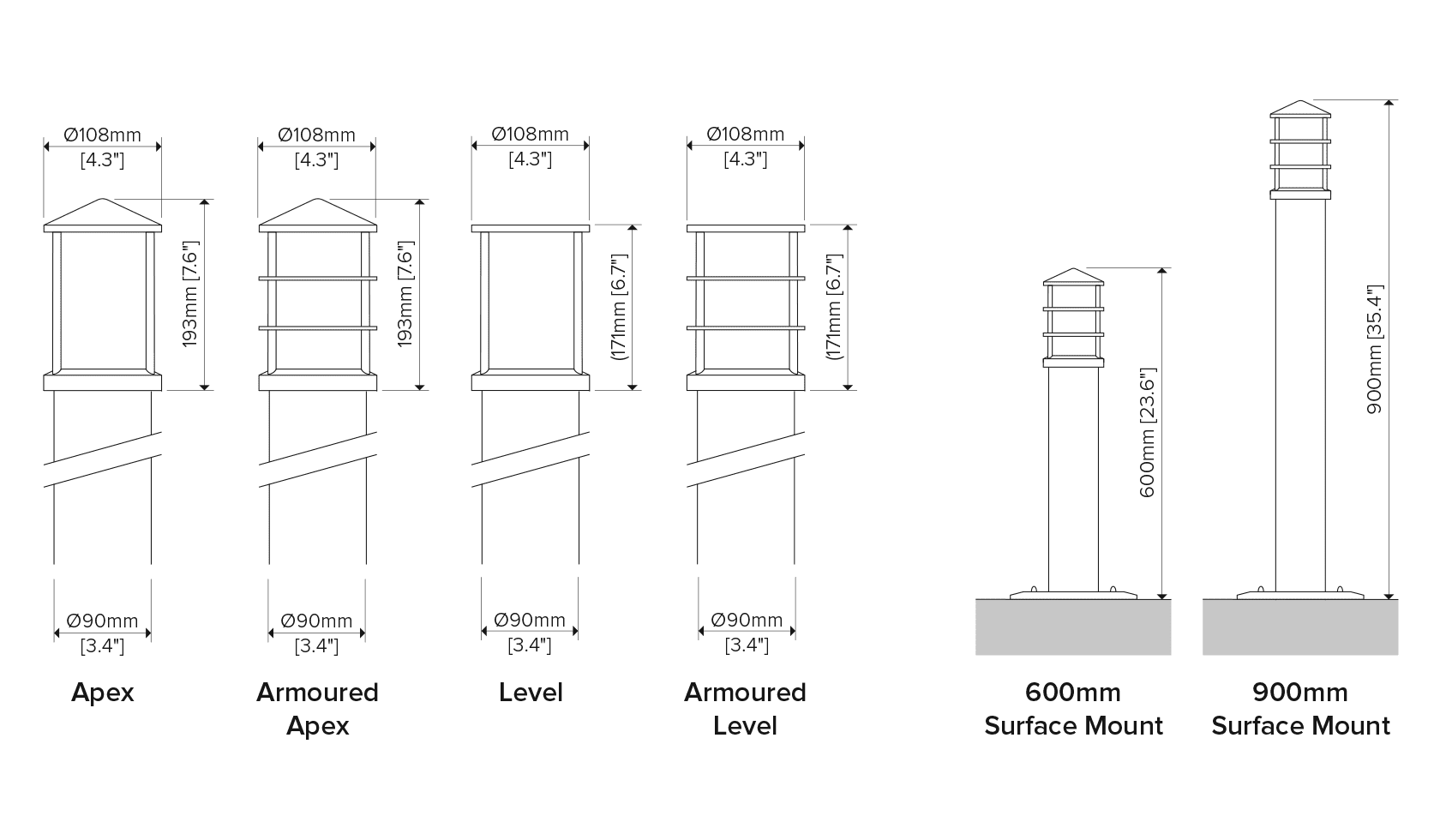

Head Type

Required

Apex (H)

Armoured Apex (B)

Level (F)

Armoured Level (I)

Mounting

Required

Surface Mount - 23.6" (600mm) (A2)

Includes surface mounting plate

Surface Mount - 35.4" (900mm) (A3)

Includes surface mounting plate

Input Voltage

Required

240V AC, 50Hz (01)

240V AC, 50Hz (01)

220V AC, 50Hz (03)

220V AC, 50Hz (03)

12V AC, 50Hz (07)

12V AC, 50Hz (07)
