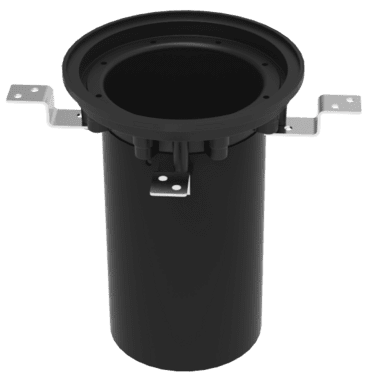

Pre-Installation Kit - LS647-K

Pre-Installation Kit for LS393LED.
Configure this product Specifications

Product Overview

Pre-Installation Kit for LS393LED.

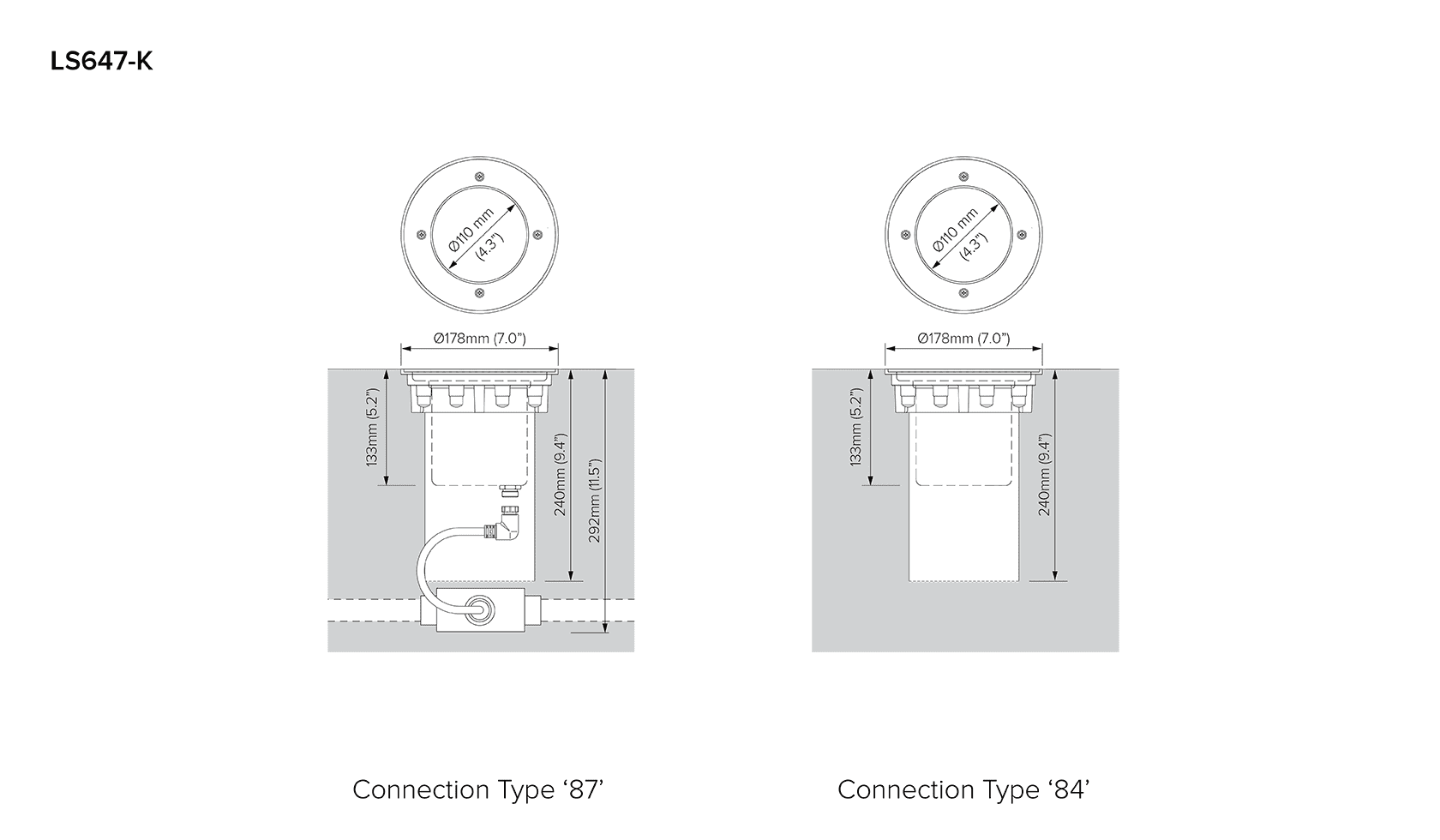

  • LS647-2         Mounting Collar - for use with hard wire connections only.
  • LS647-K-84   Hard wired installations
  • LS647-K-87   Flexible cable, single entry, for connectorised installations - non dimming

Suitable for use with
LS393LED Evoca EV4 Inground Luminaire

Specifications

Product Configurator

LS647-K _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Pre-Installation Kit below

Inground Type

Select the luminaire to suit the Pre-Installation kit.

LS393LED

LS393

Connection Type

Must match connection type of luminaire.

Required

MicroAntiLeach Cable (84)

MicroAntiLeach Cable (84)

For connections to the branch circuit via junction box (by others) or other approved method.

IP68 Connector & Junction Box (87)

IP68 Connector & Junction Box (87)

Flexible cable, single entry, for connectorised installations. Includes 1m MicroAntileach™ cable with IP68 conncector and junction box. Not suitable for colour changing or dimming applications.

Input Voltage

Required

110-240 Vac, 50/60 Hz (01)

110-240 Vac, 50/60 Hz (01)

Mains Voltage

24 Vdc (07)

24 Vdc (07)

Non-Dimmable

12V AC, 50Hz (07)

12V AC, 50Hz (07)

Requires a remote transformer
