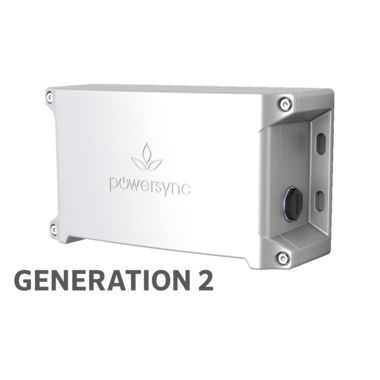

PowerSync™ Data Injector Generation 2 - LS6540

Integrated power and data to integrate seamlessly with Lumascape's intelligent luminaires.
Configure this product Features Specifications Accessories

Product Overview

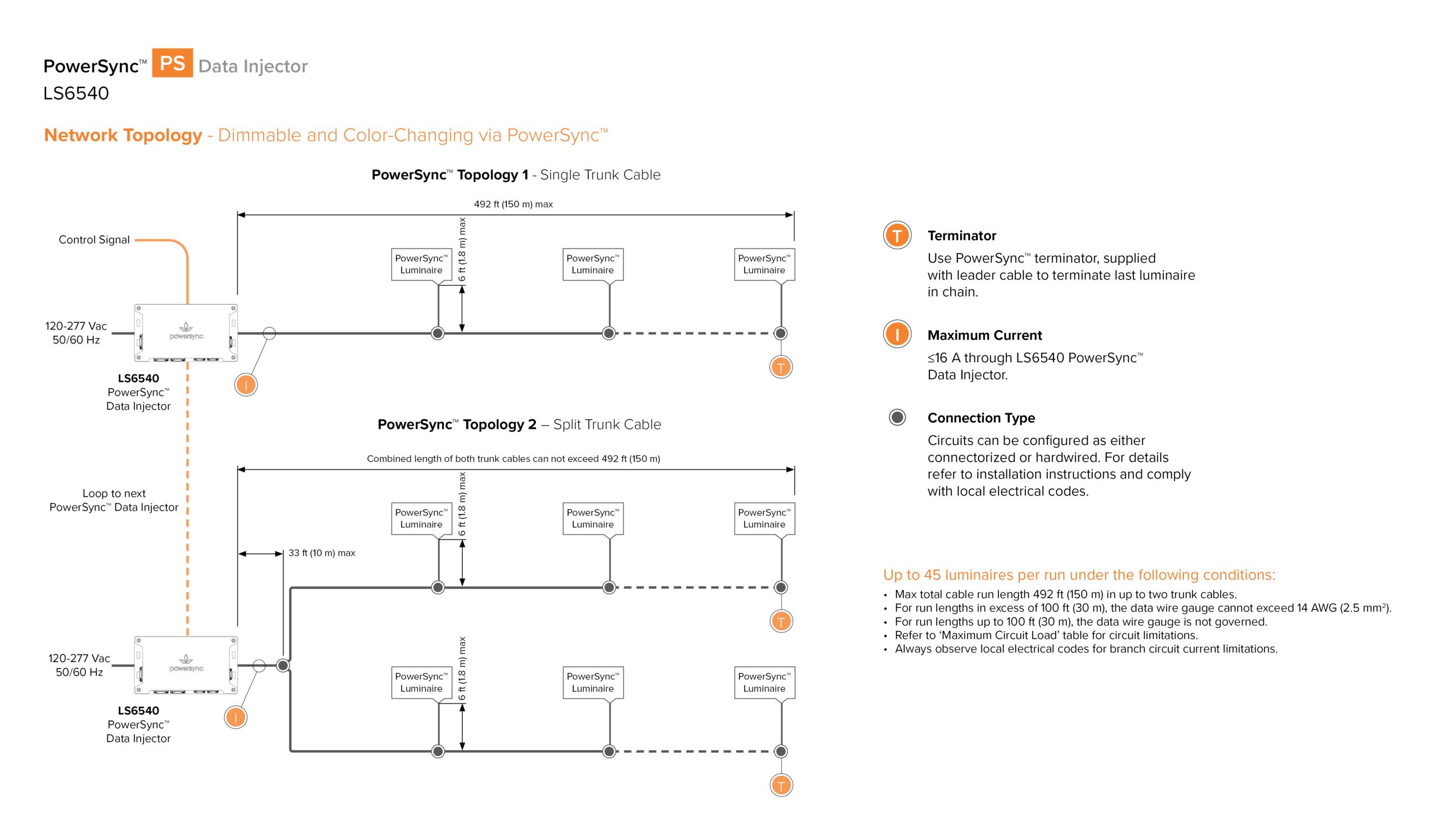

Combines the convenience of standard wiring methods to translate control signals into a digital format than can be transmitted over standard copper wire. This allows highly granular addressing and high-speed digital control of every luminaire, using only four wires. The PowerSync Data Injector accepts a growling list of standard protocols (0-10 V, DMX/RDM) for simple integration with a wide selection of control systems using these industry standard protocols.

Features

Power Consumption < 5 W Connected Current 16 A Input Voltage (International) 220-240 Vac, 50 Hz Input Voltage (NA only) 120/277 Vac, 60 Hz Control Protocol DMX/RDM, Artnet (Ethernet Based), sACN 0-10 V Control Interface Lumascape PowerSync™ IP Rating IP66 Compliance UL - USA & Canada CE RCM Data Sheet

Specifications

Accessories


LS6402C Leader Cable Line Voltage 1.5 mm²
LS6402C-2.5 Leader Cable Line Voltage 2.5 mm²
LS6404C Jumper Cable Line Voltage 1.5 mm²
LS6404C-2.5 Jumper Cable Line Voltage 2.5 mm²
LS6406 PowerSync Terminator (Hardwired Installation)
LS6425C Y-Connector Mains CE/CCC (4x1.5mm) Souriau
LS6425C-2.5 Y-Connector Mains CE/CCC (4x2.5mm) Souriau

Downloads

Data Sheet Install Guide

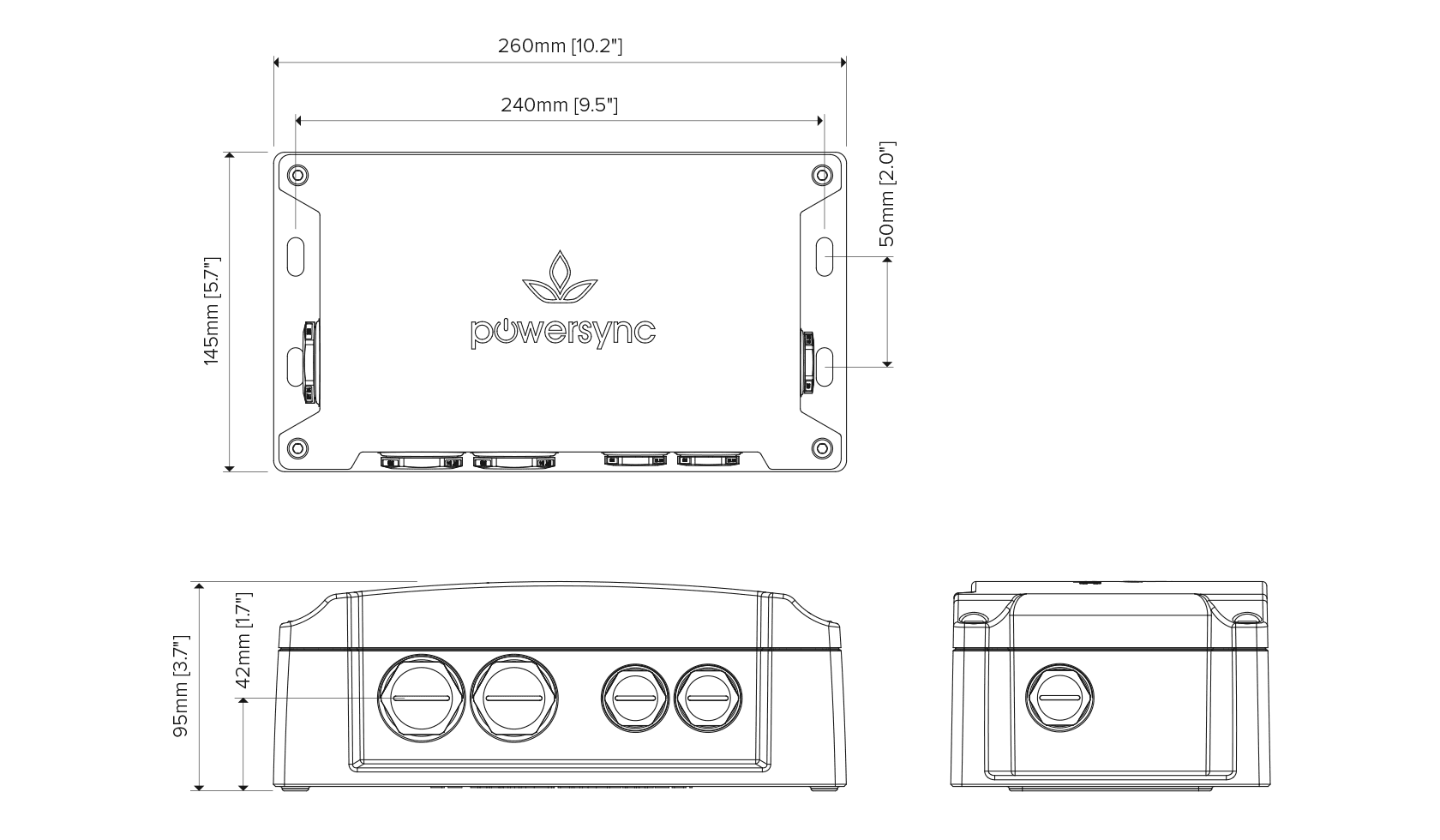

DXF Files LS6540 ZIP (298.85 KB) Advertisement PowerSync PDF (1.01 M)

Technology

Product Configurator

LS6540 _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise PowerSync™ Data Injector Generation 2 below

Input Voltage

Required

220 to 240 Vac, 50 Hz (01)

220 to 240 Vac, 50 Hz (01)

Line Voltage

Control

Required

DMX / RDM and 0-10V Input (2D)

DMX / RDM and 0-10V Input (2D)

For controlling PowerSync™ luminaires.

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories

Wiring

Connection Type 73 or 77 Only. Specify Separately

Leader Cable Line Voltage 1.5mm²

Leader Cable Line Voltage 1.5mm² (LS6402C)

For Connection Type 73 or 77 in CE installations.

More info
Leader Cable Line Voltage 2.5mm²

Leader Cable Line Voltage 2.5mm² (LS6402C-2.5)

For Connection Type 73 or 77 in CE Installations

More info
Jumper Cable Line Voltage 1.5mm²

Jumper Cable Line Voltage 1.5mm² (LS6404C)

For Connection Type 73 or 77 in CE installations.

More info
Jumper Cable Line Voltage 2.5mm²

Jumper Cable Line Voltage 2.5mm² (LS6404C-2.5)

For Connection Type 73 or 77 in CE installations.

More info

Y-Connectors

For use in CE/CCC installations.

Y-Connector Line Voltage CE/CCC (4x1.5mm) Souriau

Y-Connector Line Voltage CE/CCC (4x1.5mm) Souriau (LS6425C)

LS6245 Y-Connector

More info
Y-Connector Mains CE/CCC (4x2.5mm) Souriau

Y-Connector Mains CE/CCC (4x2.5mm) Souriau (LS6425C-2.5)

Y-Connector Mains CE/CCC (4x2.5mm) Souriau.

More info
