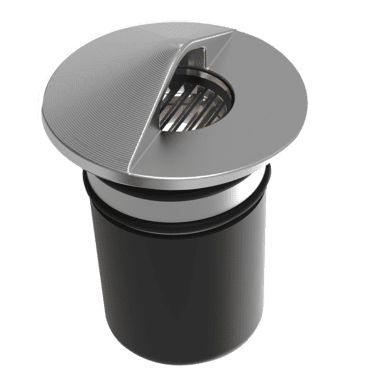

Vedita VE8 - LS9408LED

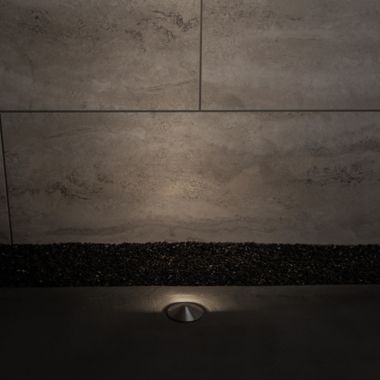

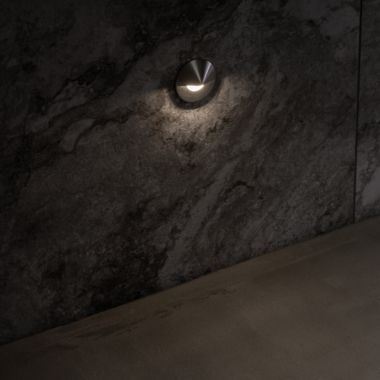

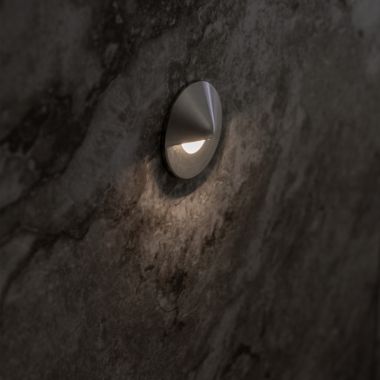

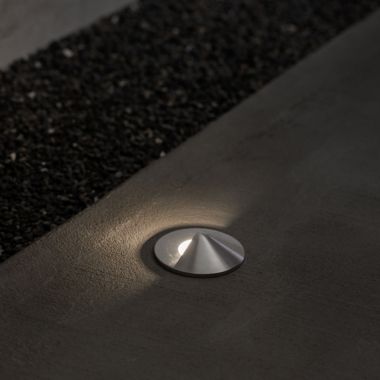

A compact and versatile low-voltage, in-ground or wall-mounted luminaire.
Configure this product Features Specifications

Product Overview

The Vedita VE8 is a versatile in-ground or wall-mounted luminaire that can be dynamically dimmed via Lumascape's d5 Dimming Technology. This luminaire is supplied with a sturdy installation sleeve, ideal for architectural installations. The premium stainless construction ensures long-lasting performance and comes standard with an ElectroPolishPlus™ surface treatment.

Features

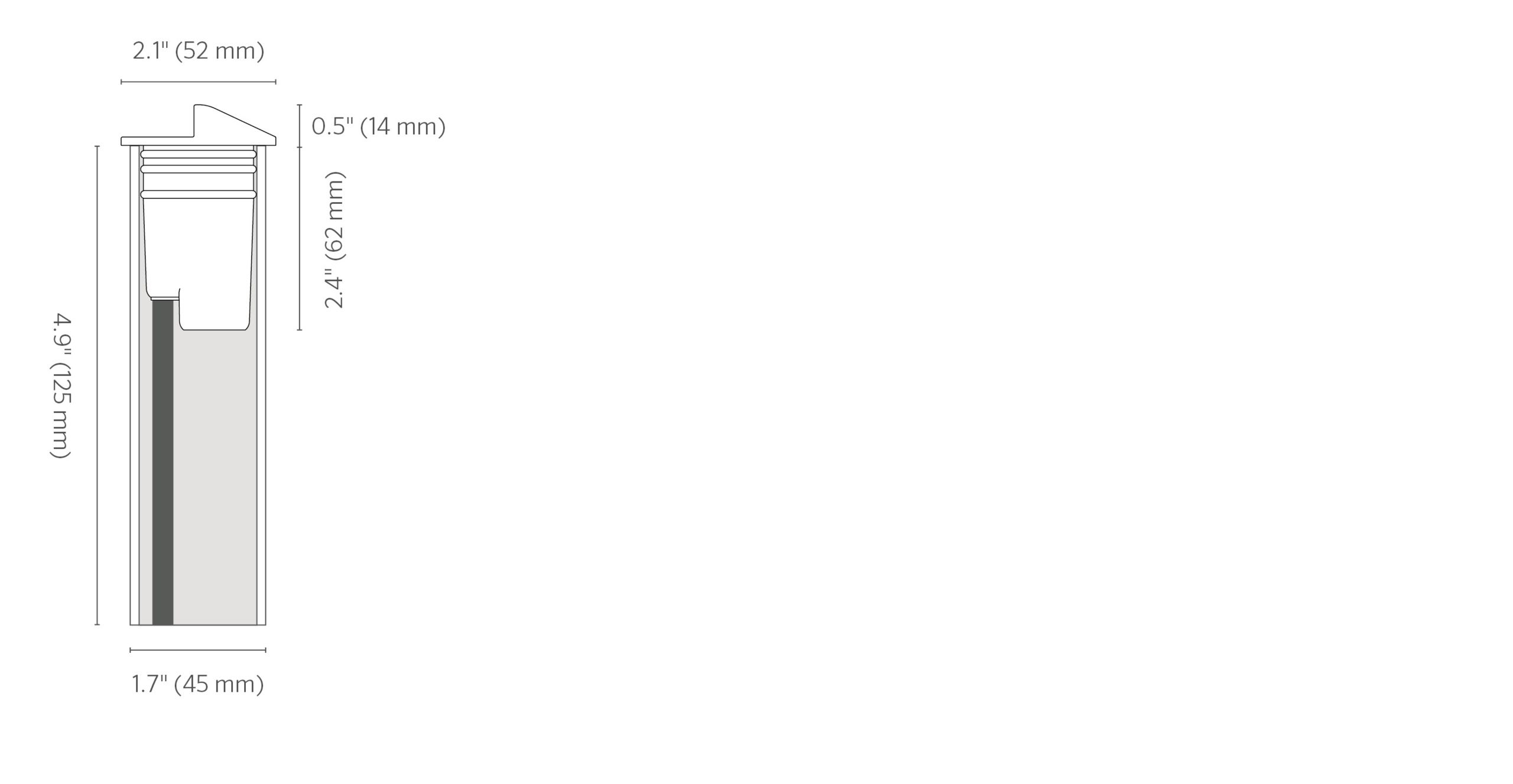

Lumen Output 98 lm Power Consumption 3 W Typical Lifetime > 60,000 hours (B10, L70, TM21 Reported) Control Protocol PWM Diameter 1.8" (45 mm) Static Load Rating 992 lb (450 kg) IP Rating IP68 IK Rating IK10 Compliance ETL - USA & Canada CE UKCA RCM Color Options Warm White Cool White Blue (470 nm) Data Sheet

Specifications

Downloads

Data Sheet
Install Guide (International) LS9401LED PDF (1.15 M) Install Guide (US) LS9401LED PDF (1.22 M) IES Files LS9408LED ZIP (3.99 KB) DXF Files LS9408LED ZIP (89.12 KB)

Technology

Product Configurator

LS9408LED _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Vedita VE8 below

Power Consumption

Required

3 W (3D)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Single Colour (BLU)

Single Colour (BLU)

Blue

Trim Style

Required

Stainless Steel (SS)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Flood (FL)

Input Voltage

Required

24 Vdc (07)

24 Vdc (07)

Non-Dimmable

Control

Required

Non-Dimmable (ND)

For single color, non-dimming applications only.

PWM Dimmable (DP)

PWM Dimmable (DP)

Cable Length

Required

2 m (02)

4 x 0.5 mm² H05RN-F flexible rubber cable

8 m (08)

4 x 0.5 mm² H05RN-F flexible rubber cable

15 m (15)

4 x 0.5mm² H05RN-F flexible rubber cable

20 m (20)

4 x 0.5 mm² H05RN-F flexible rubber cable

25 m (25)

4 x 0.5 mm² H05RN-F flexible rubber cable

Inclusions

Included with product.

Required

Installation Sleeve

Installation Sleeve

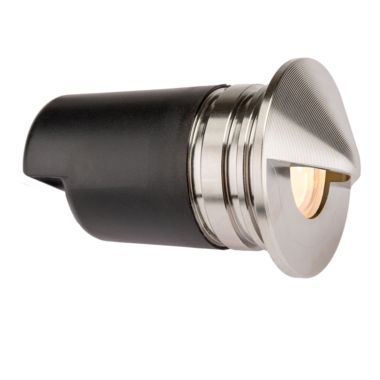

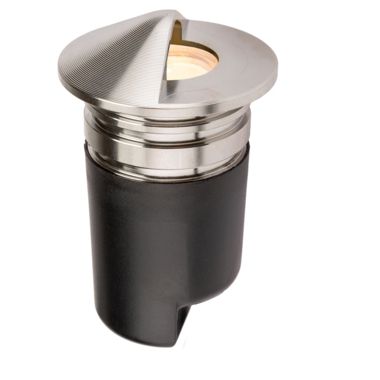

Luminaire is supplied with PVC mounting sleeve and trim. The luminaire can be used with or without this assembly. Sleeve is equivalent to a North American 1.5" Schedule 40 conduit.

Accessories

Mounting & Installation

Specify Separately

Pre-Installation Niche

Pre-Installation Niche (LS6107)

In-ground mounting kit for the LS940x luminaires. Accurately position the luminaire in rebar and concrete-pour applications. Recommended use with ¾" conduit entry for each luminaire. Conduit not included.

More info
