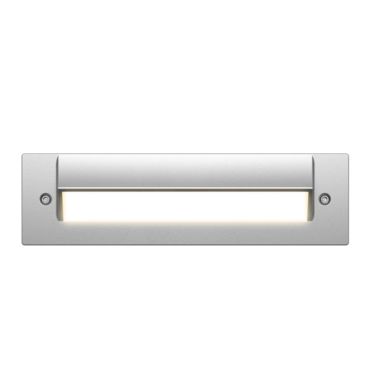

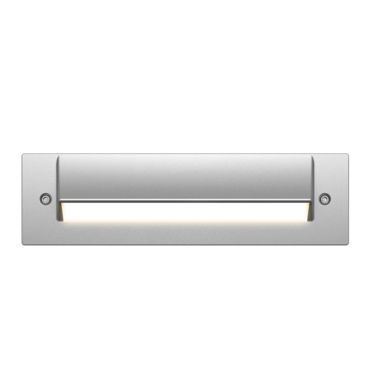

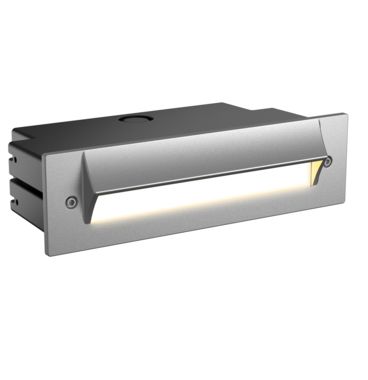

Bezel BZ2

Bezel BZ2 - LS1230

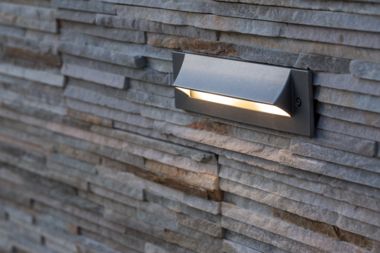

A recessed, wall-mounted luminaire that provides a powerful and versatile solution for low mounting heights.

Configure this product Features Specifications Videos

Product Overview

The Bezel BZ2 is a recessed, wall-mounted luminaire that provides a powerful and versatile solution for low mounting heights. The unique floor-graze optic reduces the required height of architectural elements to house and install the luminaire. The luminaire's performance wall optic offers best-in-class uniformity and high output to satisfy difficult municipal codes for egress and way-finding. Short and long shroud faceplate designs to maximize performance in any application. The slim, unobtrusive low-profile design offers minimalist aesthetics to accommodate other elements inside the wall.

Supplied with
LS6331	Pre-Installation Kit

Features

LED Power 3 W, 5 W, 10 W Power Consumption <4 W, <9 W, <12 W Typical Lifetime > 60,000 hrs (B10, L70) Input Voltage (Global) Low Voltage 12 Vac/dc Input Voltage (International) Line Voltage 220-240 Vac, 50 Hz Input Voltage (NA only) Line Voltage 120-277 Vac 50/60 Hz Dimming 0-10 V, Phase (forward or reverse), and/or Luxor IP Rating IP66 IK Rating IK9 Compliance

UL - USA & Canada

Color Options Warm White

Warm White

Cool White

RGBW

Data Sheet

Specifications

Videos

Product Highlights | Bezel BZ2

An introduction to the flush mount, recessed surface light from Lumascape.

Webinar | Bezel BZ2

Watch the webinar showcasing the unique features of Lumascape's Bezel BZ2.

Downloads

Data Sheet Install Guide

DXF Files LS1230 ZIP (229.28 KB) IES Files LS1230 ZIP (48.75 KB) Height and Spacing Tool V4 XLSX (685.02 KB)

Technology

Product Configurator

LS1230 _ _ _ _ _ _ _ _

Login to view pricing

Reset to Default Clear Selected Add

Customise Bezel BZ2 below

Light Engine

Required

3 W (03)

5 W (05)

10 W (10)

LED Type

Required

Designer (D)

Ideal for applications where colour consistency and colour over angle are most important (e.g., grazing and accent lighting)

Essential (E)

Select for low-voltage applications requiring longevity, efficiency, and versatility (e.g., landscape and architectural)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Shielding

Required

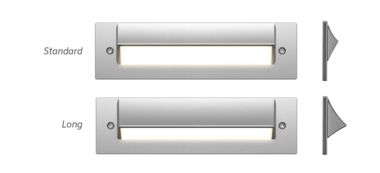

Standard (ST)

Standard Shield option for Bezel BZ2

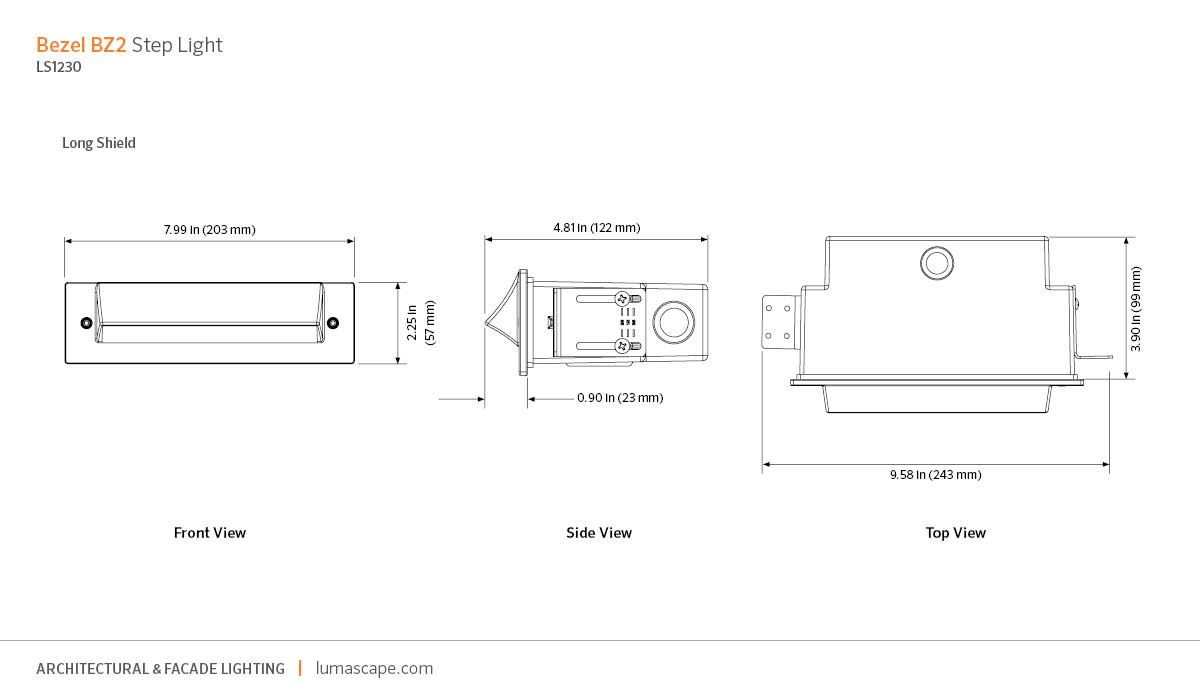

Long (LG)

Long Shield option for Bezel BZ2

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Medium Throw (MD)

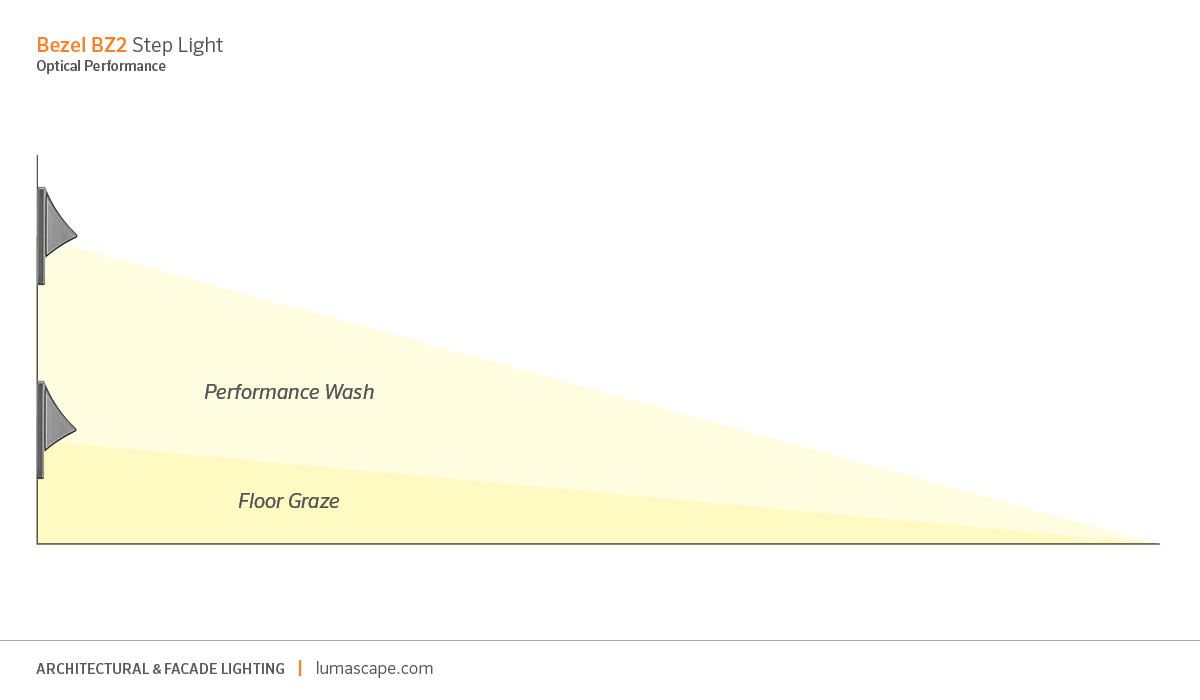

Floor Graze (FG)

Performance Wash (PW)

Power Supply

Required

12 Vac/dc, 50/60 Hz (22)

Low Voltage

220-240 Vac, 50 Hz (01)

Line Voltage

Control

Required

0-10 V (AH)

For single color dimming applications via 0-10 V.

Non-Dimmable (AH)

For single color dimming applications

Phase-Dimmable or Luxor Zoning (ZP)

Phase-Dimmable or Luxor Dimming (ZD)

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info

Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info

Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info

Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray

More info

Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info

White (WT)

RAL9016 from RAL Classic collection

More info

Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info

Latte (LT)

RAL7006 from RAL Classic collection

More info

Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info

Custom RAL (CC)

Custom RAL (CC)

A one-off custom colour setup fee applies. Click on 'More Info' button to add to your enquiry.

More info
