Nook NK4

Nook NK4 - LS1265

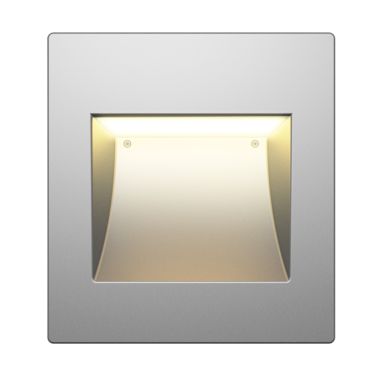

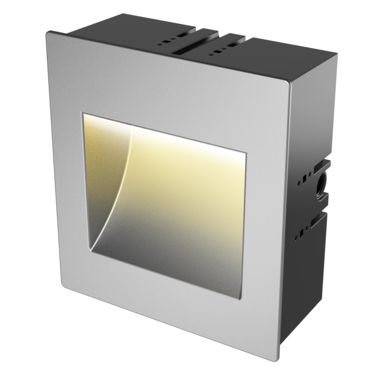

A recessed, wall-mounted luminaire that offers beautiful lighting transitions in a compact design.

Configure this product Features Specifications Videos

Product Overview

Strength, versatility and unmatched style come together in the Nook NK4 recessed wall light, producing a uniquely crafted luminaire that complements traditional, modern and classical architecture and brings a layer of elegance to any commercial space.

Supplied with
LS6333	Pre-Installation Kit

Features

Wattage Configuration 8 W, 11 W, 15 W and 25 W Typical Lifetime > 50,000 hrs (B10, L70) Input Voltage (Global) 220-240 Vac/dc, 50 Hz Input Voltage (NA only) 120 Vac/dc 60 Hz, 110-277 Vac/dc 60 Hz Dimming 0-10 V, Phase Dimming IP Rating IP65 IES Classification Type II or Type III Compliance

UL - USA & Canada

Color Options Warm White

Warm White

Data Sheet

Specifications

Videos

Product Highlights | Nook NK4

An introduction to the Nook NK4, wall-mount recessed luminaire by Lumascape.

Webinar | Nook NK4

Watch the webinar showcasing the unique features of Lumascape's Nook NK4

Downloads

Data Sheet Install Guide

IES Files LS1265 ZIP (105.21 KB) Height and Spacing Tool V4 XLSX (685.02 KB) DXF Files LS1265 ZIP (77.81 KB)

Technology

Product Configurator

LS1265 _ _ _ _ _ _ _ _ _

Login to view pricing

Reset to Default Clear Selected Add

Customise Nook NK4 below

Light Engine

Required

8 W (08)

11 W (11)

15 W (15)

25 W (25)

LED Type

Required

Principle (P)

Select for a wide variety of applications in accent and general lighting (e.g., bollard and step lighting)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 2 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 2 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 2 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 2 SDCM)

Optics

Required

Clear Lens (CL)

Frosted Lens (FR)

Style

Required

Square (SQ)

Eased Square (ES)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Short Throw (ST)

Medium Throw (MD)

Long Throw (LG)

Input Voltage

Required

220-240 Vac/dc, 50 Hz (01)

For use on 0-10 V controls

120 Vac/dc, 60 Hz (04)

For phase-dimming controls only

110-277 Vac/dc, 60 Hz 0-10 V (09)

For use on 0-10 V controls

Control

Required

Phase-Dimmable (PD)

0-10V (10%) (AS)

0-10V (10%) (AS)

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info

Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info

Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info

Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info

White (WT)

RAL9016 from RAL Classic collection

More info

Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info

Latte (LT)

RAL7006 from RAL Classic collection

More info

Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info

Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Accessories
