In-ground
Erden E4
Product Overview

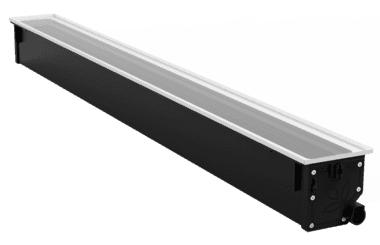

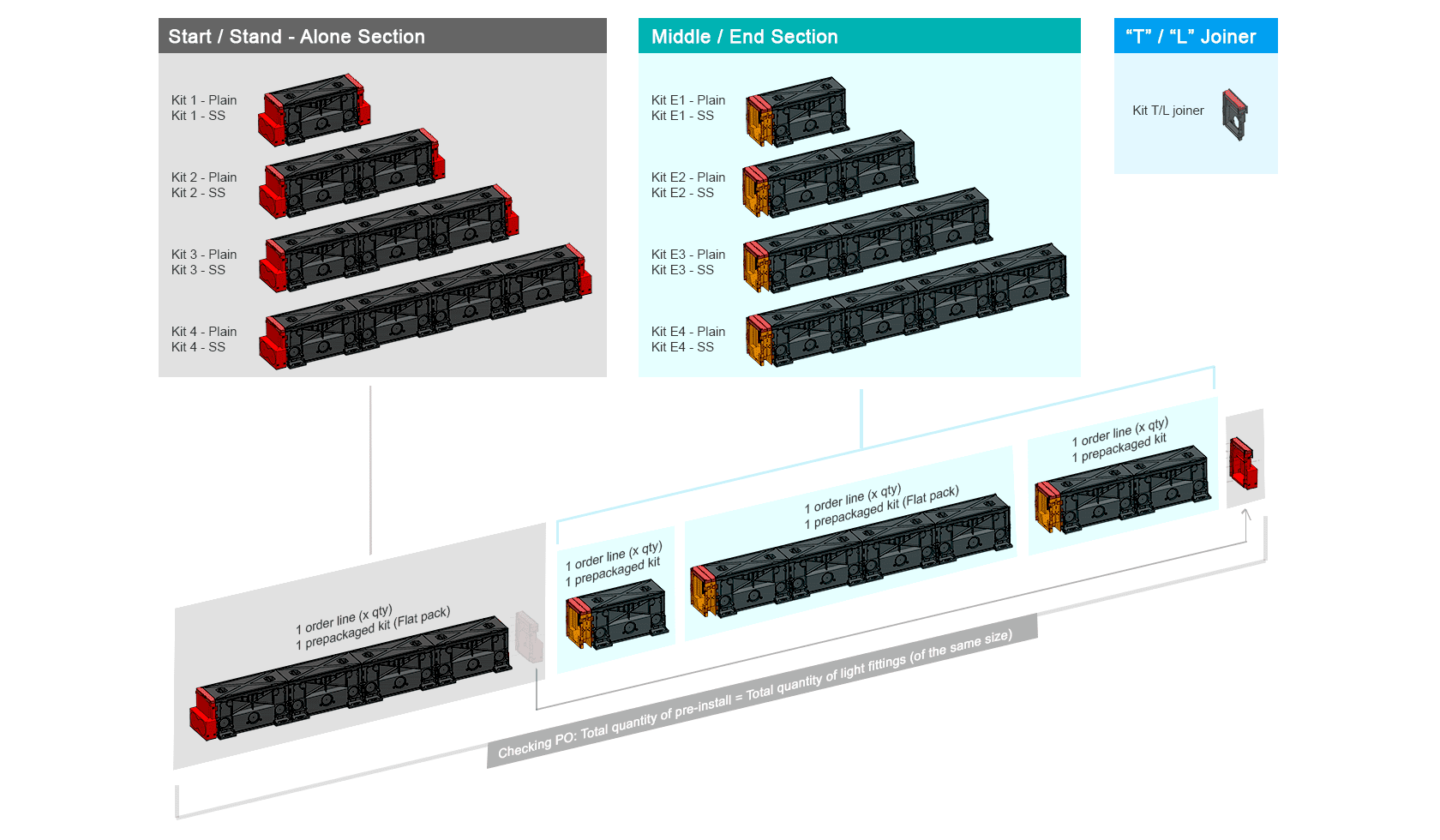

A high output linear inground that combines technology and performance in a stylish linear form factor featuring a bezel-less edge to edge glass slab cover with a sealed ± 15° tilt adjustment. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Available in a range of lengths and combined with unique and flexible T and L junctions enables the luminaire to be installed in multiple orientations including continuous linear. Available in white, colour changing and tunable white light engines.
Features
Lumen Output 7,785 lm
LED Power 12 W/ft | 16 W/ft
Power Consumption 19 W/ft | 24 W/ft
Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported)
Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected)
Input Voltage 120-277 Vac, 50/60 Hz
Earth Leakage 0.6 mA @ 220 V
Control Interface PowerSync™
Control Protocol DMX/RDM, Artnet, PWM, 0-10 V
IP Rating IP66 / IP67 (IP68 Tested)
IK Rating IK9
Compliance
Color Options
Data Sheet
Color Options
Data Sheet
Specifications
Accessories
| Control | |
| LS6540 | PowerSync Data Injector, Line Voltage, Generation 2 (Required for PS installations only) |
| Wiring | |
| LS6402C-PS | Leader Cable, Line Voltage, 4-Core, PowerSync |
| LS6402C-2.5-PS | Leader Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm² |
| LS6404C-PS | Jumper Cable, Line Voltage, 4-Core, PowerSync |
| LS6404C-2.5-PS | Jumper Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm² |
Product Configurator
Length
Select the luminaire length
