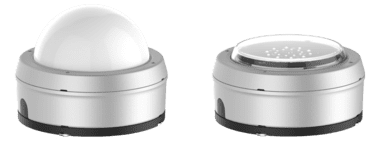

Faisca F6

Faisca F6 - LS9260

An intelligent high-powered architectural marker light for architectural and infrastructure applications

Configure this product Features Specifications Videos Accessories

Product Overview

The Faisca F6 is an intelligent, ultra high-output marker light with a simple yet elegant design. that allows for easy and rapid installation. The plug and play electrical connections enhance the quick and easy installation process by preventing incorrect connections.

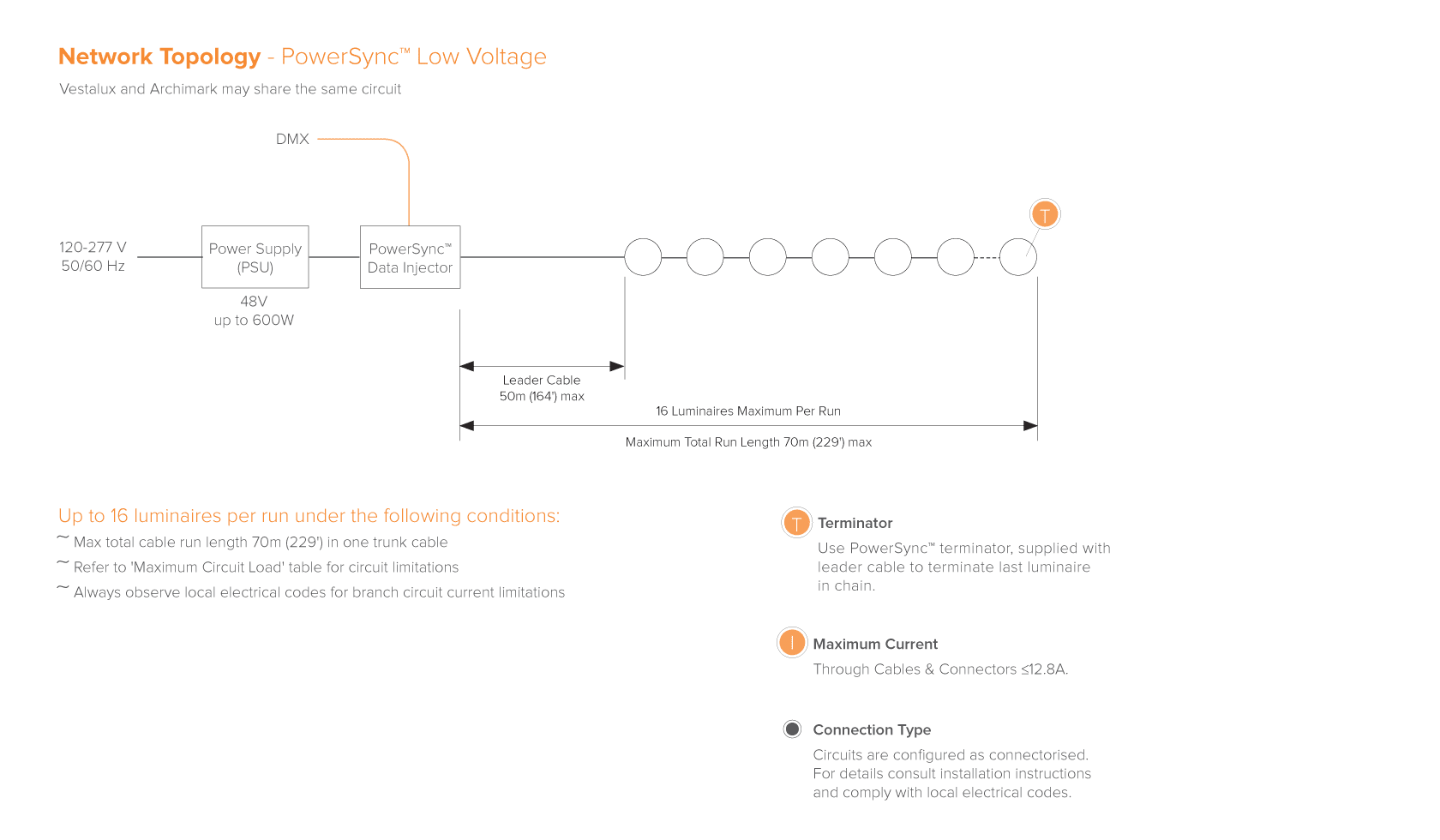

Leader cables of up to 164 ft (50 m) give greater flexibility during installation as power supplies and control equipment can be housed well away from the luminaires.

High-quality LEDs achieve high-intensity beautiful, rich and vibrant colors. From highlighting architectural elements to super-smooth crossfades and color flows.

Features

Lumen Output 2,840 lm LED Power 16 W Power Consumption ≤ 20 W Typical Lifetime (TM21 Reported) > 72,000 hours @ 50°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 72,318 hours @ 50°C Ambient (B10, L90, TM21 Projected) Input Voltage 30-48 Vdc Control Interface PowerSync™ Control Protocol DMX/RDM, Artnet, PWM, 0-10 V (sink or source) IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK10 Compliance

Color Options Warm White

Data Sheet

Specifications

Videos

Product Highlights | Faisca F6

Meet the Faisca F6, with a surface brightness of 100,000 cd/m² in RGBW, imagination is the only limit!

Accessories


Control
LS65 50	PowerSync Data Injector, Low Voltage, Generation 2 (Required for PS installations only)
LSLED40W-48V	DC Power Supply, 48 V, 40 W
LSLED80W-48V	DC Power Supply, 48 V, 80W
LSLED120W-48V	DC Power Supply, 48 V, 120 W
LSLED240W-48V	DC Power Supply, 48 V, 240 W
LSLED320W-48V	DC Power Supply, 48 V, 320 W
LSLED480W-48V	DC Power Supply, 48 V, 480 W
LSLED600W-48V	DC Power Supply, 48 V, 600 W

Wiring (Connection Type 63 or 67 Only)
LS6426-PS	Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-PS	Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6426-ND	Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync
LS6427-ND	Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync

Downloads

Data Sheet Install Guide

DXF Files LS9260 ZIP (655.36 KB) IES Files LS9260 V2 ZIP (165.9 KB)

Technology

Product Configurator

LS9260 _ _ _ _ _ _ _ _

Reset to Default Clear Selected Add

Customise Faisca F6 below

Light Engine

Required

16 W (16D)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (850)

5,000K (80 CRI, 3 SDCM)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

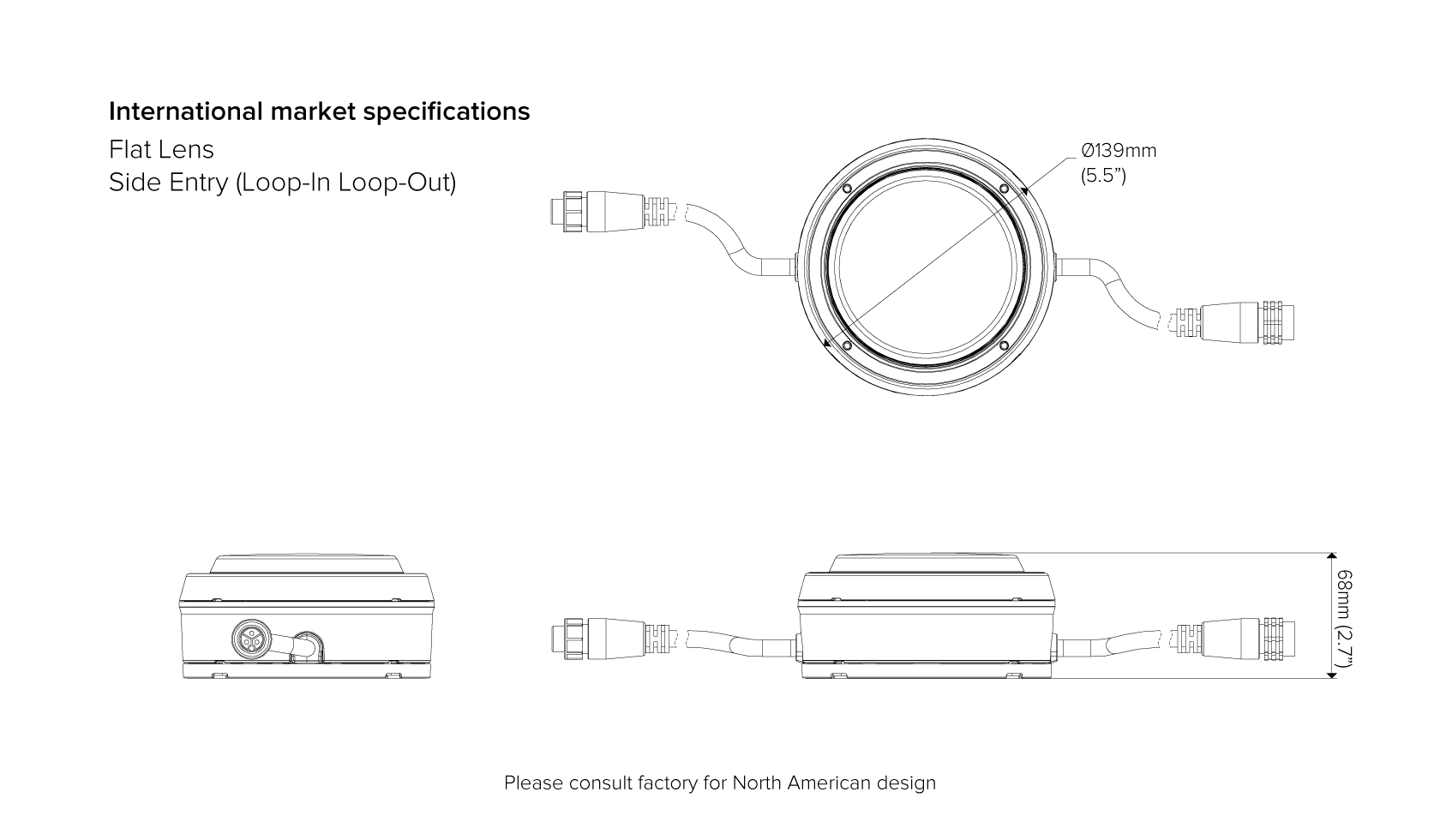

Loop in/out (83)

For connection to the branch circuit via flexible cable, up to 1.8m (6ft) in length. This configuration features loop in/out capability. Requires HARDWIRED connection point at each end of the luminaire.
