Product Overview

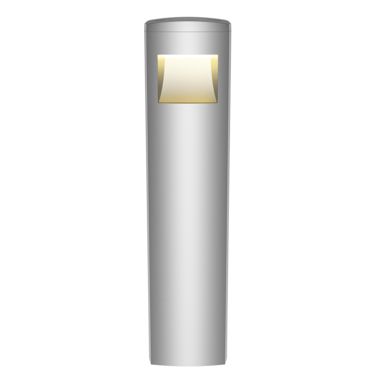

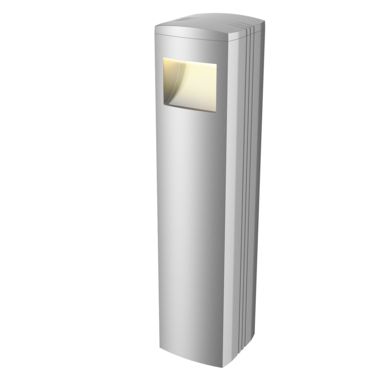

The Rise RS8 is the only commercial bollard with variable throw distances, orientations, luminous flux, correlated color temperature, and control options. The eased square design ensures it fits within many styles of architecture, and the 10” (0.25 m) robust design ensures the bollard complements project sites. The absence of visible hardware creates a clean and confident design, while the twist-and-lock design adds stability. The curved faceplate design offers a “no glare” feature for pedestrian comfort. Prevent scratching during installation with the galvanic isolator. There are many features in this design, and the benefits to the specifier, architect, installer, maintenance personnel, property manager, and guests are endless.
Supplied with |
|
| LS6334 | Pre-Installation Kit |
Features
Wattage Configuration 8 W, 11 W, 15 W, 25 W, 16 W, 22 W, 30 W, 50 W
Typical Lifetime > 50,000 hrs (L70, B10)
Input Voltage (Global) 220-240 Vac/dc, 50 Hz
Input Voltage (NA only) 120 Vac/dc 60 Hz, 110-277 Vac/dc 60 Hz
Dimming 0-10 V, Phase-Dimming
IP Rating IP65
IES Classification Type II or Type III
BUG Rating B0-U1-G0 (Ground Plane Version)
Compliance
Color Options
Data Sheet
Color Options
Data Sheet
Specifications
Videos
Product Highlights | Rise RS8
An introduction to the Rise RS8, the first bollard of its kind, specially designed for busy public spaces.
Webinar | Rise RS8
Watch the webinar showcasing the unique features of Lumascape's Rise RS8.
