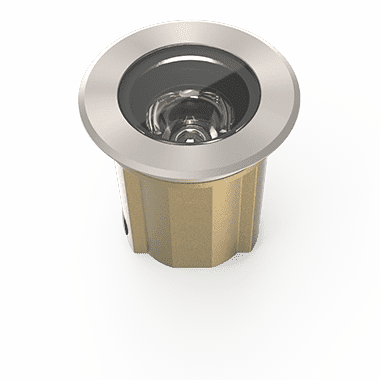

Erden Brass EB2 - LS3320

An architectural-grade, medium-powered in-ground
Configure this product Features Specifications Accessories

Product Overview

The Erden Brass EB2 is a medium-powered in-ground that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols using line voltage. Available in white, color-changing and tunable white light engines.

Features

Lumen Output 810 lm Power Consumption 9 W Typical Lifetime (TM21 Reported) > 60,000 hours (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Projected) Input Voltage Low Voltage 30 to 48 Vdc Control Protocol DMX/RDM, Artnet Weight 4.0 lbs (1.8kg) Drive-Over With OptiClear lens and pre-installation kit (LS647-K) IP Rating IP68 IK Rating IK8 Static Load Rating 6,614 lb (3,000 kg) Environment Inherently protected, suitable for use in poured concrete Compliance UL - USA & Canada CE RCM Color Options Warm White Cool White RGBA RGBW with Royal Blue Tunable White Data Sheet

Specifications

Accessories

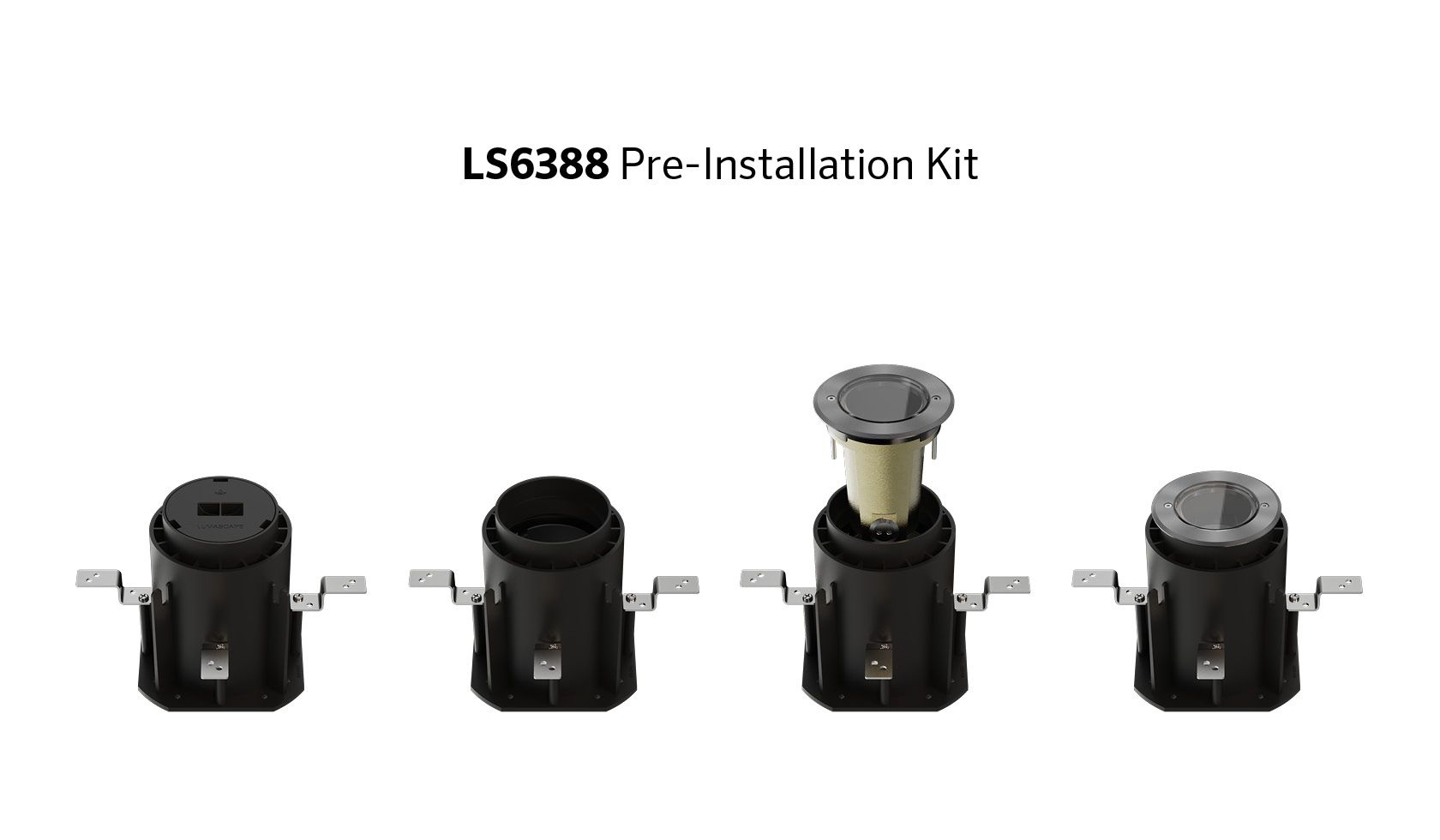

LS6388 Pre-Installation Kit
LS6389 Pipe Clamp

Downloads

Data Sheet
LS3320_LS3326_LS3720_DB_IN_____250203.pdf PDF (1.96 M) LS3320_LS3326_LS3720_PI_IN_____250125.pdf PDF (683.37 KB) LS3320_LS3326_LS3720_CM_IN_____250203.pdf PDF (338.41 KB) DXF Files LS332x.zip ZIP (499.12 KB)

Technology

Product Configurator

LS3320 _ _ _ _ _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Erden Brass EB2 below

Installation Type

Select the installation type you require.

Required

Pipe Clamping Kit

Pipe Clamping Kit

Pre-Installation

Pre-Installation

Direct Burial

Direct Burial
