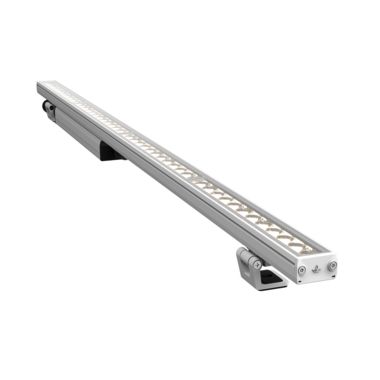

Linealux L3

Linealux L3 - LS9030

A compact, high-performance linear grazer for architectural and infrastructure applications.

Configure this product Features Specifications Videos Accessories

Product Overview

The Linealux L3 is a compact, high-performance linear grazer luminaire combining technology and performance in a stylish design. Packed with features including EasyGlow™ visual comfort, CoolDrive™ thermal management technologies and MicroAntileach™. Controllable in 1 foot segments through the use of PowerSync™ and provides superb color-over-angle consistency and blending of colors even at
close blending distances.

Features

Lumen Output 5,280 lm Power Consumption 15.1 W/ft (12 W/ft LED Power) Typical Lifetime (TM21 Reported) > 60,000 hours @ 50°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours (B10, L90, TM21 Reported) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Earth Leakage 0.2 mA @ 120 Vac, 0.42 mA @ 240 Vac, 0.24 mA @ 277 Control Interface PowerSync Control Protocol DMX / RDM, Artnet, PWM, 0-10 V IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK6 Construction; IK10 accessories available on request Vibration Resistance 3G Rating (ANSI C136.31) Compliance

Color Options Warm White

Data Sheet

Specifications

Videos

Product Highlights | Linealux L3

An introduction to the Linealux L3

Accessories


Control

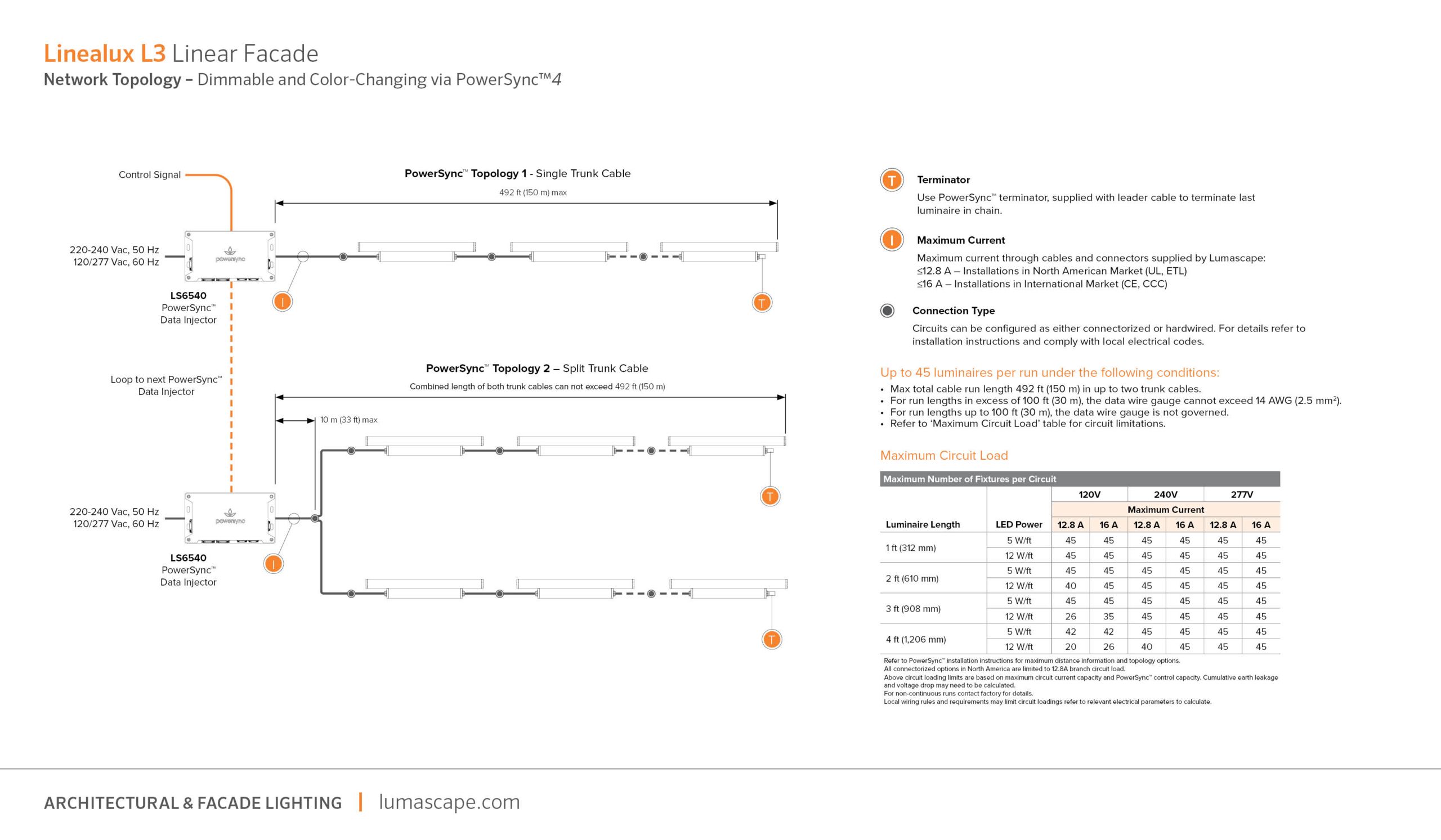

LS6540	PowerSync Data Injector, Line Voltage, Generation 2

Wiring
LS6402C-PS	Leader Cable, Line Voltage, 4-Core, PowerSync
LS6402C-2.5-PS	Leader Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm²
LS6404C-PS	Jumper Cable, Line Voltage, 4-Core, PowerSync
LS6404C -2.5-PS	Jumper Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm²

Glare Control
LS6237	External / Slatted Louver
LS6238	External Shield / Visor 1-sided
LS6239	External Shield / Visor 3-sided

Mounting
LS6221-06	6" (152 mm) Stand Off Bracket
LS6221-12	12" (305 mm) Stand Off Bracket
LS6221-18	18" (47 mm) Stand-Off Bracket
LS6221-24	24" (610 mm) Stand-Off Bracket
LS6221-48	48" (1,219 mm) Stand-Off Bracket
