Quadralux Q2

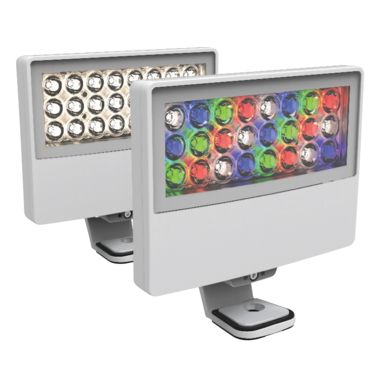

Quadralux Q2 - LS9120

A small architectural-grade spotlight, combining technology and performance in a modern form factor.

Configure this product Features Specifications Accessories

Product Overview

Packed with features including EasyGlow™ visual comfort, and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Designer optics, provide superb color-over-angle consistency and color blending even at close distances. Available in white, color-changing and tunable white light engines.

Features

Lumen Output 3,340 lm Power Consumption 33 W Typical Lifetime (TM21 Reported) > 60,000 hours @ 50°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours @ 50°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 6 Control Interface Lumascape PowerSync Control Protocols DMX/RDM, Artnet (Ethernet Based), PWM, 0-10 V (sink or source) IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK8 Vibration Resistance 3G Rating (ANSI C136.31) Compliance

Color Options Warm White

Data Sheet

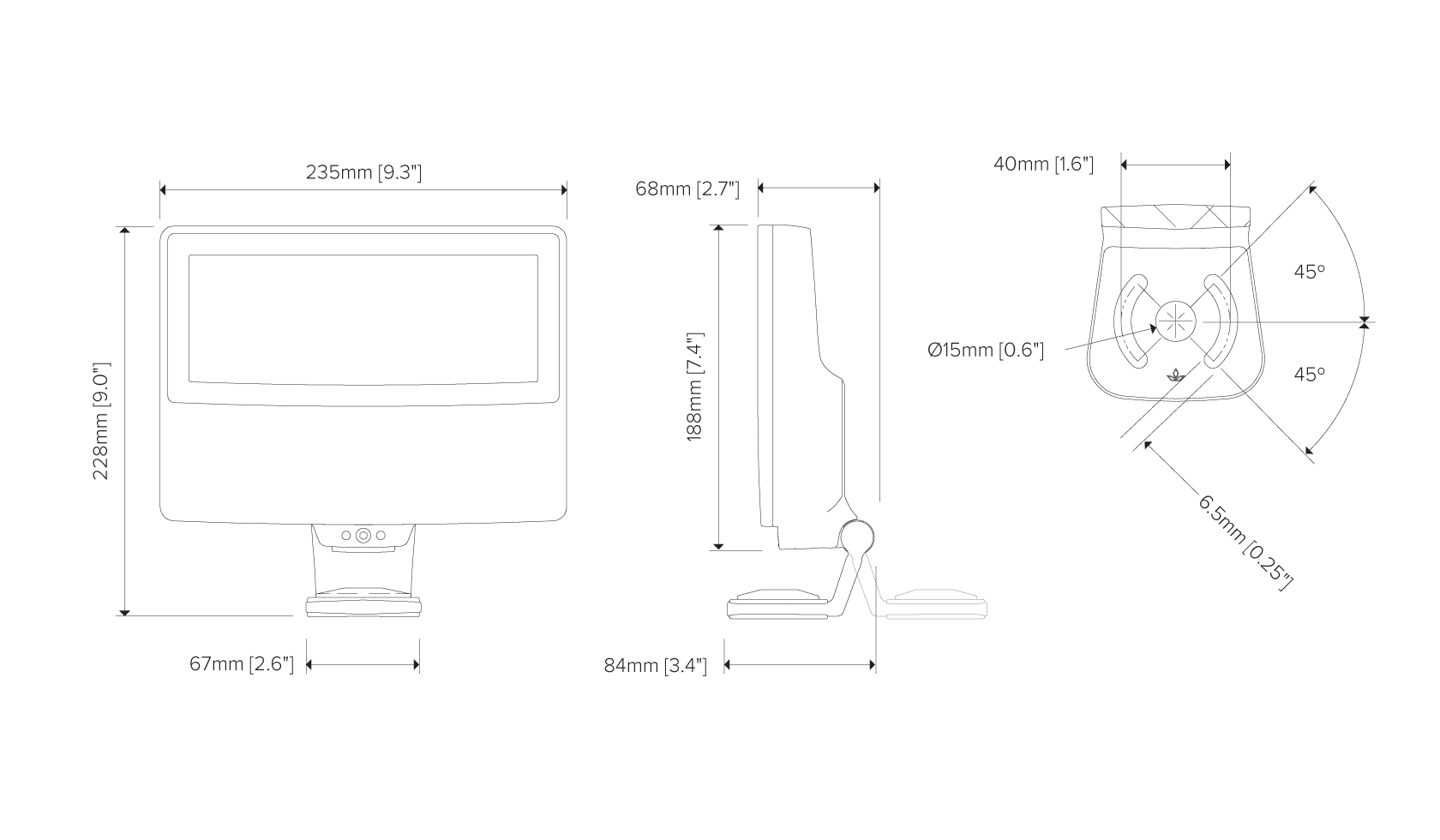

Specifications

Accessories


Control
LS6540	PowerSync Data Injector, Line Voltage, Generation 2

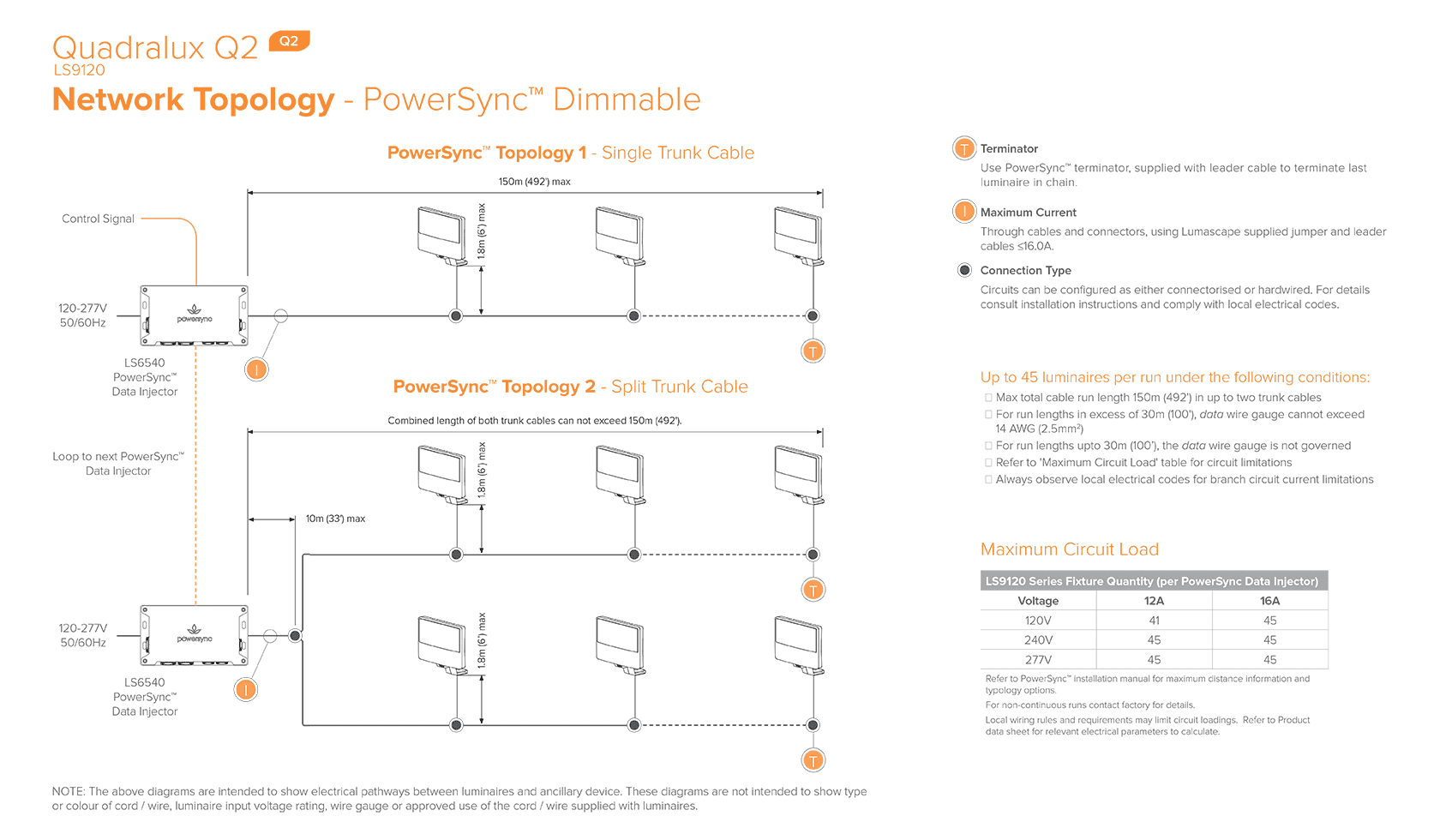

Wiring
LS6402C-PS	Leader Cable, Line Voltage, 4-Core, PowerSync
LS6402C-2.5-PS	Leader Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm²
LS6404C-PS	Jumper Cable, Line Voltage, 4-Core, PowerSync
LS6404C -2.5-PS	Jumper Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm²

Glare Control
LS6201	Accessory Holder
LS6202	Cross Hatch Louver
LS6203	45° Visor
LS6204	Custom Visor

Mounting
LS6301	4.0" (106mm) Junction Box Adaptor / Surface Mounting Kit
LS6302	3.0" (76mm) Pole Clamp
LS6303	4.0" (102mm) Pole Clamp
LS6304	4.5" (114mm) Pole Clamp
LS6305	5.0" (127mm) Pole Clamp
LS6306	2 3/8" x 4.0" (60mm x 104mm) Tenon Adaptor
LS6307	3.5" x 6.0" (89mm x 147mm) Tenon Adaptor
LS6221-06	6" (152 mm) Stand-Off Bracket
LS6221-12	12" (305 mm) Stand-Off Bracket
LS6221-18	18" (47 mm) Stand-Off Bracket

Downloads

Data Sheet Install Guide

IES Files LS9120 ZIP (1.12 M) BIM Files LS9120 ZIP (3.56 M) DXF Files LS9120 ZIP (325.27 KB) Product Flyer Q2 & Q4 PDF (148.97 KB) CAD Details Link

Technology

Product Configurator

LS9120 _ _ _ _ _ _ _ _ _

Reset to Default Clear Selected Add

Customise Quadralux Q2 below

Light Engine

Required

30 W (30)

LED Type

Required

Designer (D)

Ideal for applications where colour consistency and colour over angle are most important (e.g., grazing and accent lighting)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

Single entry (77)

For connection to the supply circuit via Lumascape connection system with IP68 rated connectors. This method allows for tool free final connection to the luminaire.
