Quadralux Q6

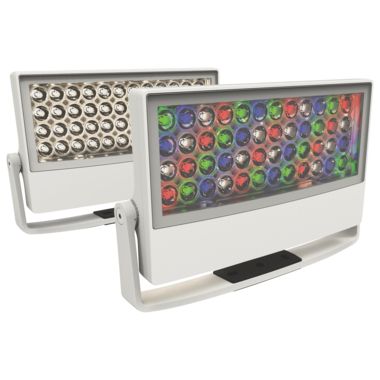

Quadralux Q6 - LS9160

An large, high-powered, architectural-grade spotlight designed to achieve a peak intensity of up to 672,000 Candela.

Configure this product Features Specifications Accessories

Product Overview

Packed with features including EasyGlow™ visual comfort, and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Designer optics, provide superb color-over-angle consistency and color blending even at close distances. Available in white, color-changing and tunable white light engines.

Features

Lumen Output 8,280 lm Power Consumption ≤86 W Typical Lifetime (TM21 Reported) > 60,000 hours @ 50°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 86,935 hours @ 50°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Control Interface Lumascape PowerSync Control Protocol DMX/RDM, Artnet, PWM, 0-10 V (sink or source) IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK9 Vibration Resistance 3G Rating (ANSI C136.31) With optional 3G Bracket Compliance

Color Options Warm White

Data Sheet

Specifications

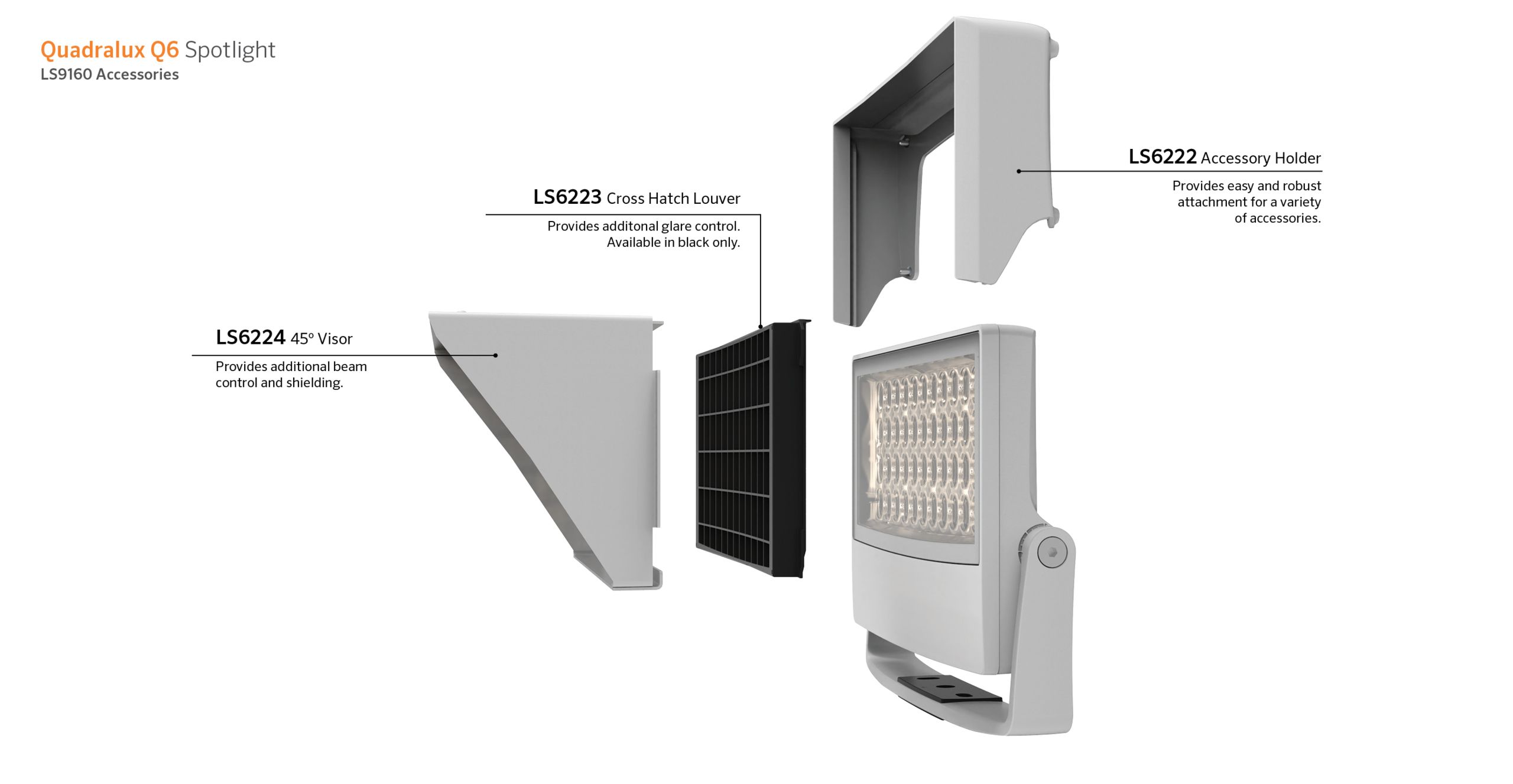

Accessories


LS6222	Accessory Holder
LS6223	Cross Hatch Louver
LS6224	45° Louver
LS6225	Custom Visor
LS6317	3.0" (76mm) Pole Clamp
LS6318	4.0" (120mm) Pole Clamp
LS6319	4.5" (114mm) Pole Clamp
LS6320	5.0" (127mm) Pole Clamp

Downloads

Data Sheet Install Guide

IES Files LS9160 ZIP (1.63 M) DXF Files LS9160 ZIP (420.57 KB) BIM Files LS9160LED ZIP (1.34 M) Product Flyer Q6 & Q8 PDF (166.83 KB) Advertisement LS9160 PDF (715.28 KB)

Technology

Product Configurator

LS9160 _ _ _ _ _ _ _ _ _

Reset to Default Clear Selected Add

Customise Quadralux Q6 below

Light Engine

Required

80 W (80D)

Light Source

Required

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

5,000K (70 CRI, 3 SDCM)

Dynamic Colour (4CA)

RGBA

Dynamic Colour (4BW)

RGBW with Royal Blue

Tunable White (2WT)

2,700 K - 6,500 K

Connection Type

Required

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

Single entry (77)

For connection to the supply circuit via Lumascape connection system with IP68 rated connectors. This method allows for tool free final connection to the luminaire.
