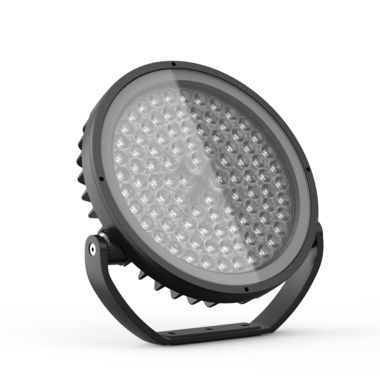

Kololux K8 - LS9380

The Kololux K8 is a large, high-powered, architectural-grade projector featuring Lumascape’s patented Kompass, rotatable elliptical beam technology.

Product Overview

Kompass technology provides the ability to rotate elliptical beams through 360°, helping to illuminate angled and curved architectural features, sculptural objects and organic natural elements with ease, the technology also provides flexibility in difficult mounting applications enabling the fitting to be mounted on uneven and angled surfaces while providing vertical or horizontal illumination. Packed with additional features including EasyGlow™ visual comfort, CoolDrive™ thermal management technologies and PowerSync,™ allowing for
highly granular digital control via common protocols.

Features

Lumen Output 16,460 lm Power Consumption ≤ 160 W Typical Lifetime (TM21 Reported) > 60,000 hours @ 50°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 86,935 hours @ 50°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Control Interface PowerSync Control Protocol DMX/RDM, Artnet (Ethernet Based), PWM, 0-10 V (sink or source) IP Rating IP66 / IP67 (Passes IP68 Test) IK Rating IK9 Vibration Resistance 3G Rating (ANSI 136.31) With Optional 3G Bracket Compliance ETL - USA & Canada CE UKCA RCM FCC Color Options Warm White Cool White RGBA RGBW with Royal Blue Tunable White Data Sheet
